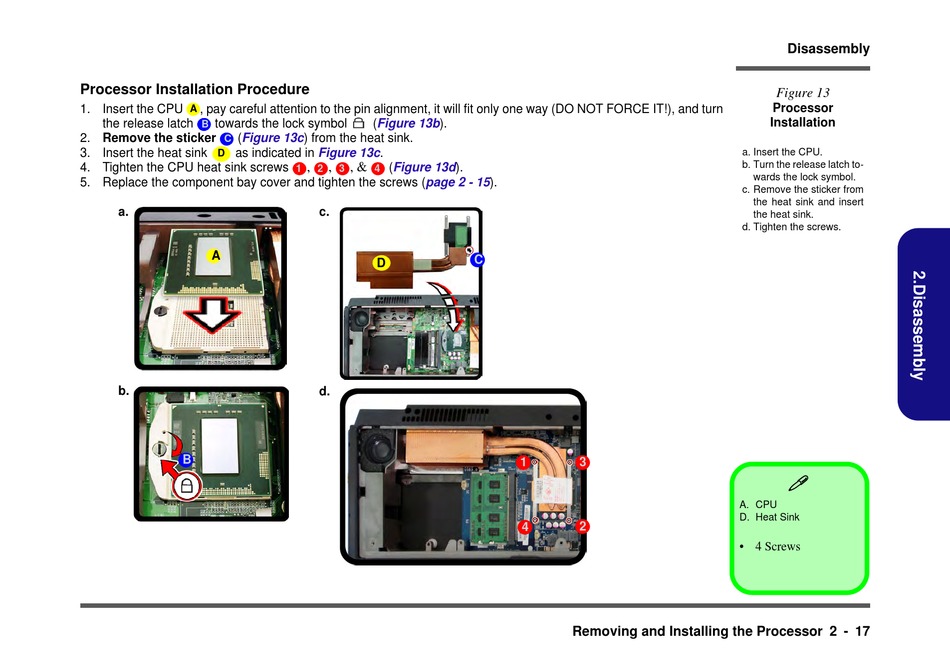

Processor Installation Procedure
1. Insert the CPU , pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!), and turn
A
the release latch towards the lock symbol
B
2. Remove the sticker (Figure
C
3. Insert the heat sink as indicated in
D
4. Tighten the CPU heat sink screws
5. Replace the component bay cover and tighten the screws
a.
A
b.
B
(Figure 13b).
13c) from the heat sink.
Figure 13c.
, , , & (Figure 13d).
1 2 3 4
(page 2 -
c.
D
d.
15).
C
1 3
2
4
Removing and Installing the Processor 2 - 17
Disassembly
Figure 13
Processor
Installation
a. Insert the CPU.
b. Turn the release latch to-
wards the lock symbol.
c. Remove the sticker from
the heat sink and insert
the heat sink.
d. Tighten the screws.

A. CPU
D. Heat Sink
• 4 Screws
