3. Diagnostic aids

This chapter explains the tests and procedures to identify printer failures and verify repairs have corrected the
problem.

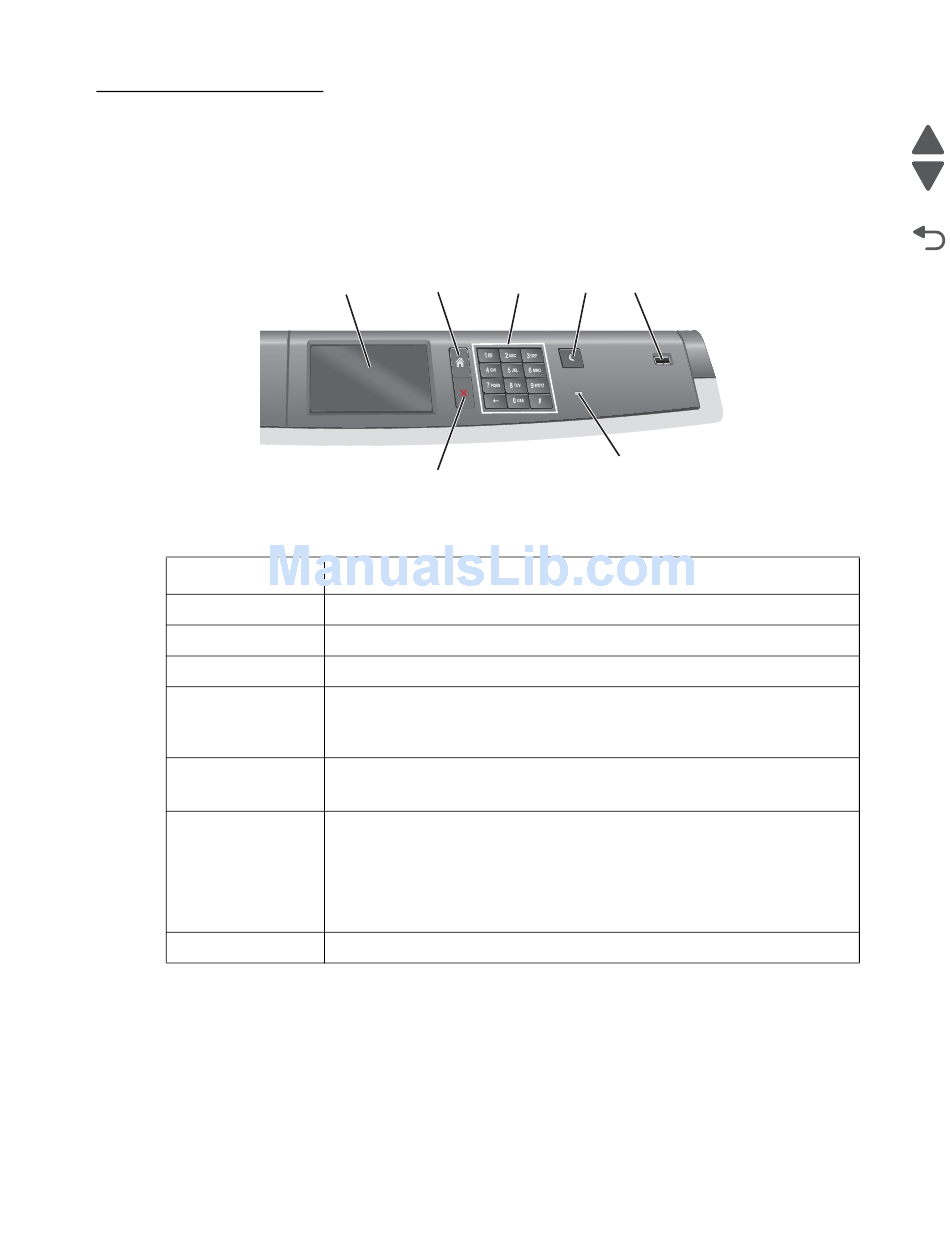

Understanding the printer operator panel

Item
1- Display
2 - Home
3 -Keypad
4 - Sleep Mode
5 - USB Port
6 - Indicator Light
7 - Stop
2
1
7
Description
Shows the status of the printer.
Lets you navigate back to the home screen.
Allows you to enter numbers, letters, or symbols.
Enables Sleep Mode
Note: Touching any button on the screen will cause the printer to
wake from Sleep Mode.
Allows the user to connect a USB flash drive to the printer.
Note: Only the front USB port supports flash drives.
Off- The printer is off.
Blinking green - The printer is warming up, processing data, or printing.
Solid green - The printer is on, but idle.
Solid red - Operator intervention is needed.
Amber - The printer enters Sleep Mode or Hibernate Mode.
Cancel a print job, or break out of a menu item in the printer menus.
4 5
3
6
5041-030
