Exit guide (paper exit) roll removal

Note: You will need to remove the drive gear, spring, and washer on the paper exit roll and place it on the
new paper exit roll.
1.
Remove the paper exit unit. See
2.

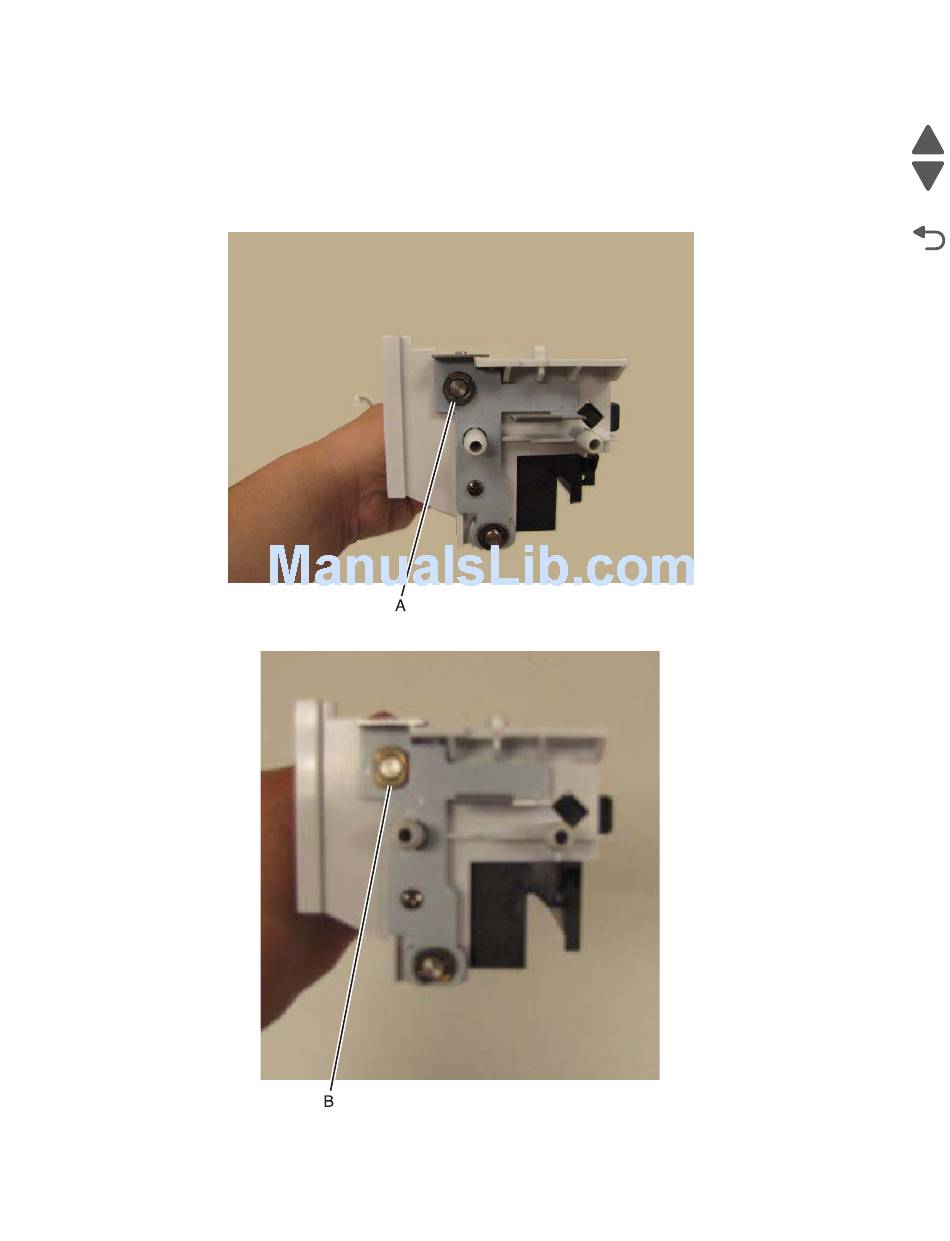

Remove the e-clip (A) that fastens the exit unit roll to the paper exit unit.
3.
Remove the bushing (B).
4-112
Service Manual
"Paper exit guide removal" on page 4-24.
