5041-030
Top removals
Output bin full sensor actuator removal
1.
Remove the top cover. See
2.

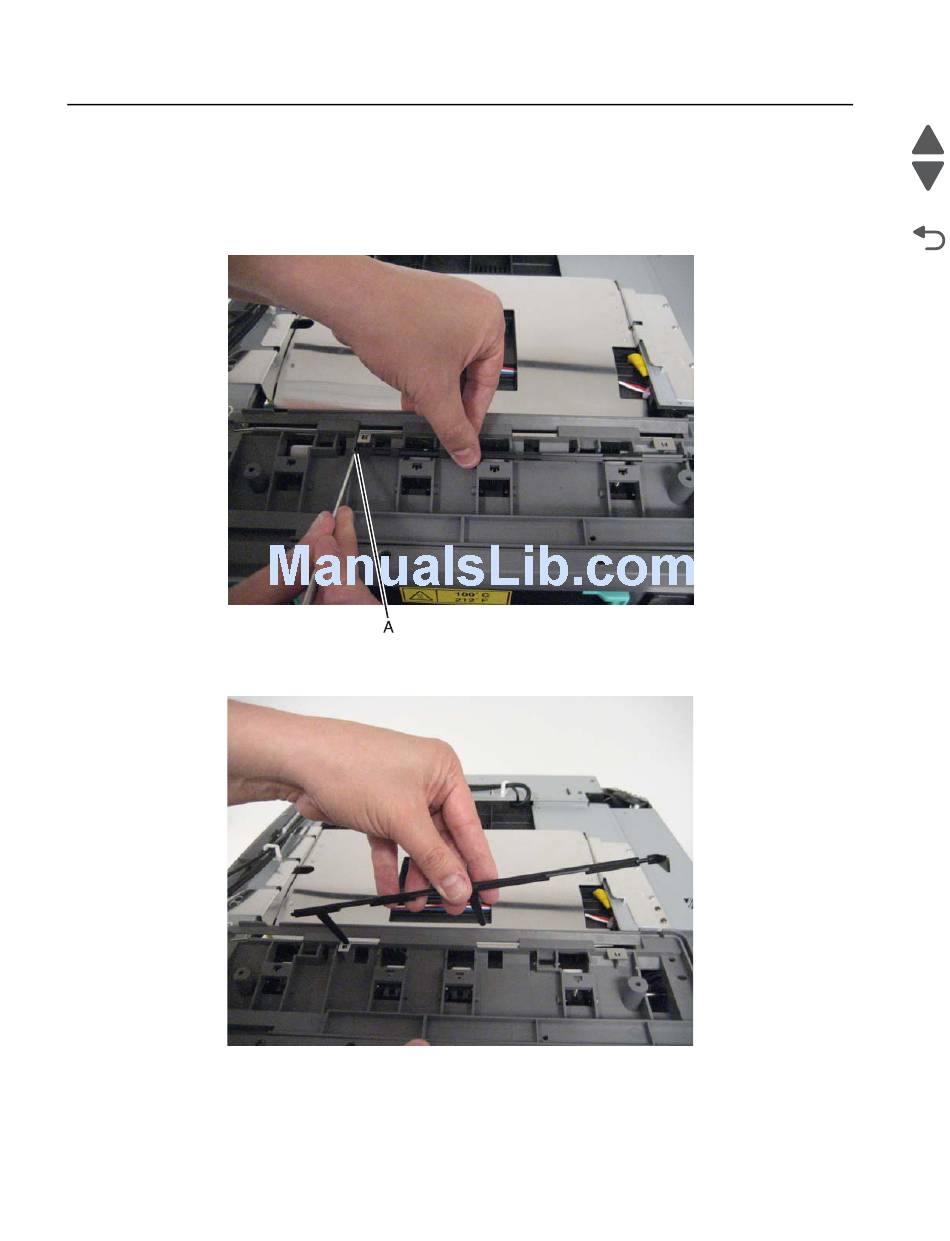

Use a flatbed screwdriver to gently pry the tab (A) holding the actuator in place.
3.
Carefully lift the actuator up. Be careful to avoid dislodging the exit sensor.
4-18
Service Manual
"Top cover removal" on page
4-11.
