Fuser Exit Drive Unit Motor Removal - Lexmark C925 Service Manual

5041-030

Fuser exit drive unit motor removal

1.
Remove the rear EMI shield.See
2.

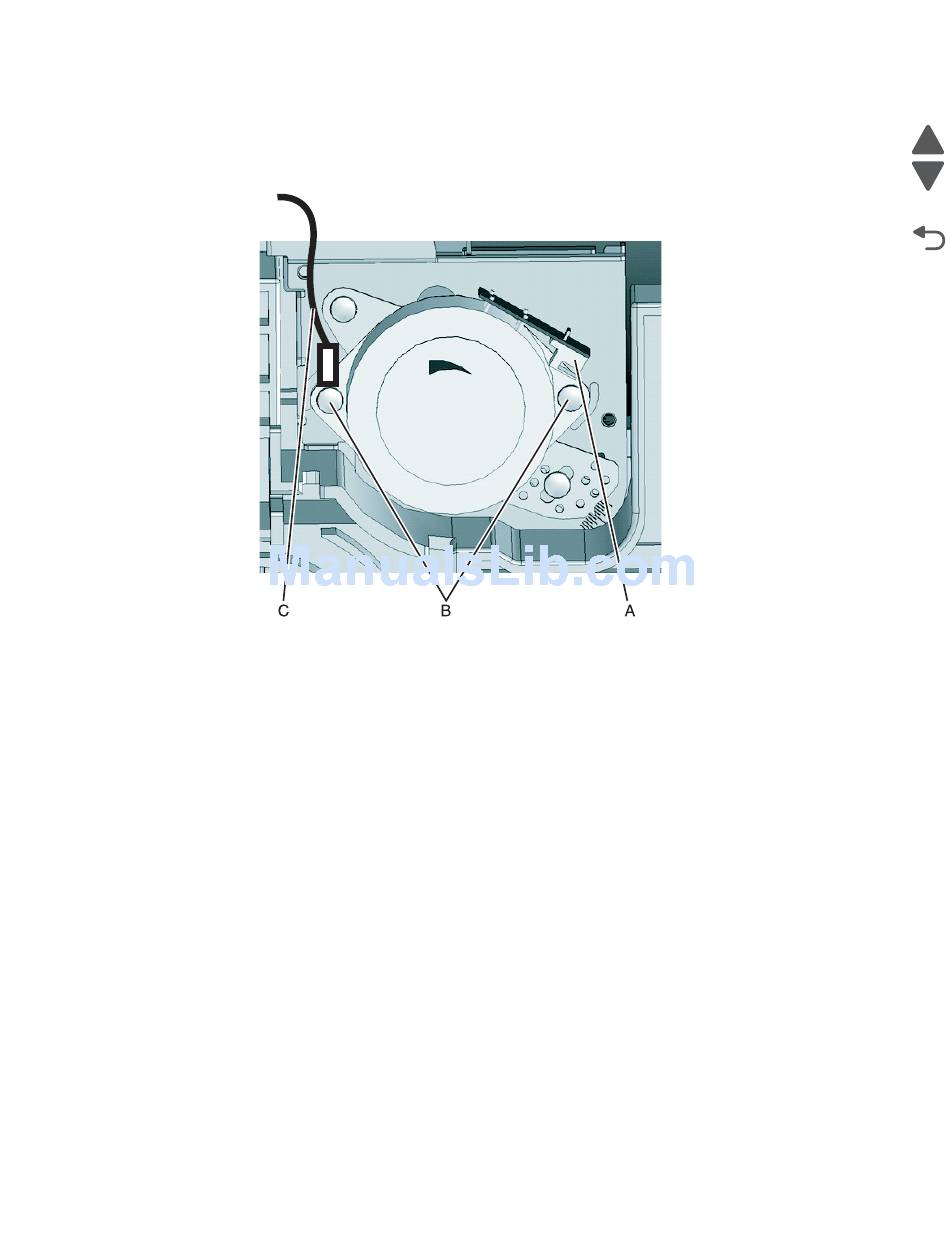

Disconnect the cable from the connector (A) exit drive unit motor.
3.
Remove the two screws (B) that secure the exit drive unit motor to the fuser motor damper.
Note: The ground wire (C) is connected with one of the screws. Be sure to replace the ground wire when
replacing the motor.
4-72
Service Manual
"Rear EMI shield removal– Not a FRU" on page 4-82.
