5041-030
5.

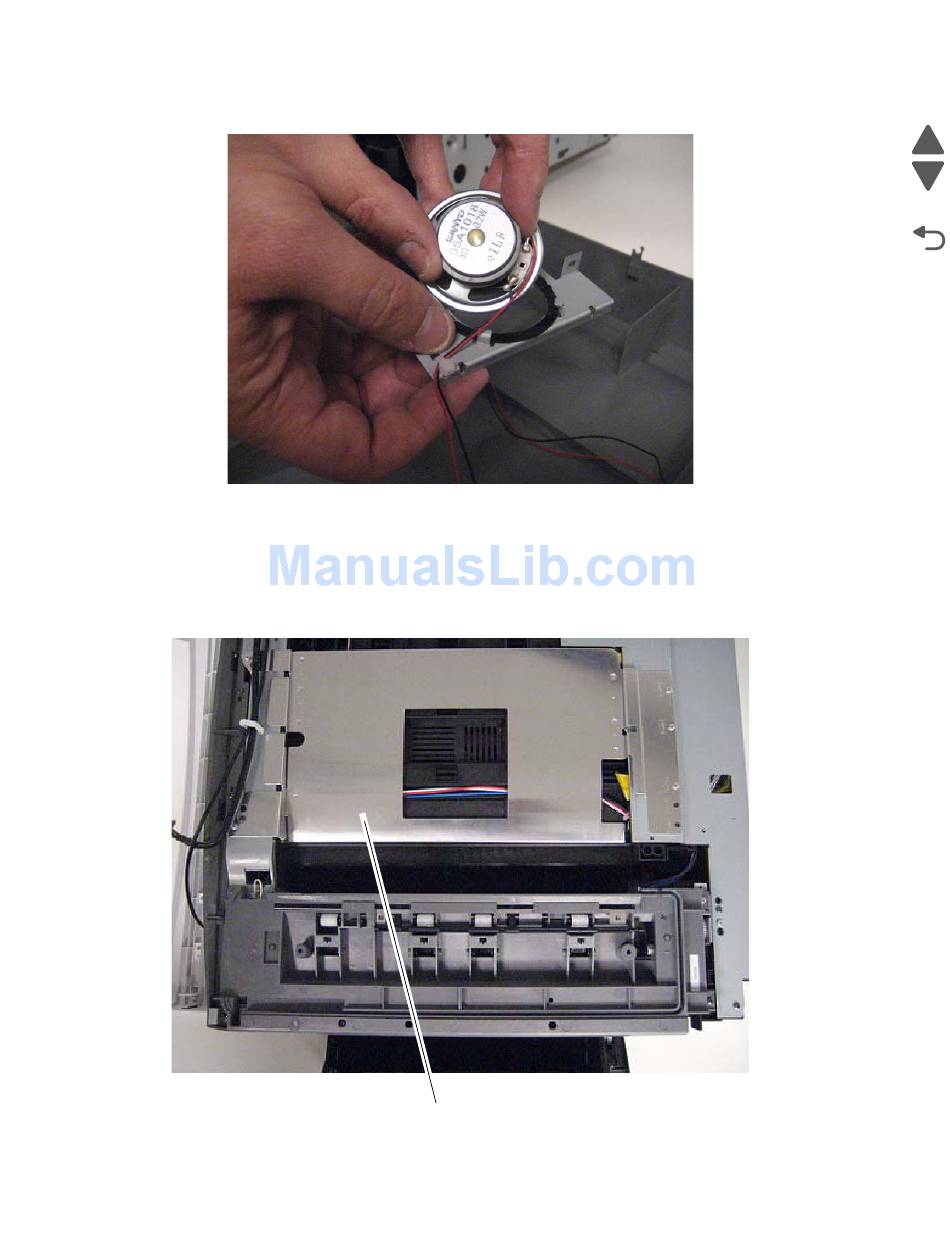

Remove the speaker from the frame.
Top EMI sheild removal
1.
Remove the top cover. See
2.
Remove the seven screws securing the sheild (A) to the top of the printer. There are five screws on the
rear and two screws on the front.
4-30
Service Manual
"Top cover removal" on page
A
4-11.
