5041-030
Operator panel removal
1.
Remove the operator panel bezel. See
2.

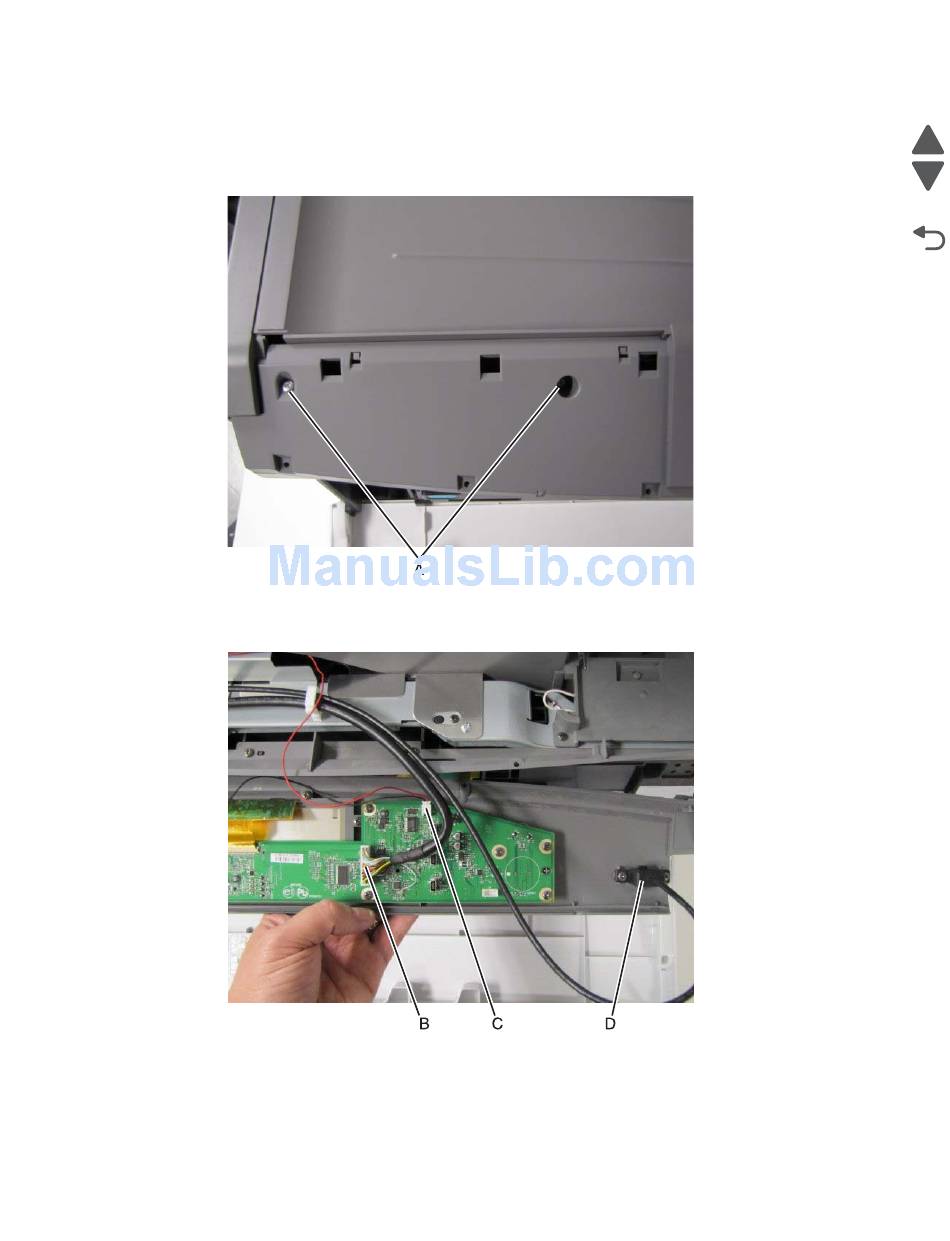

Remove the two screws (A) securing the operator panel assembly to the printer frame.
3.
Turn the operator panel assembly over.
4.
Disconnect the RIP-UICC cable (B).
5.
Disconnect the speaker cable (C).
6.
Disconnect the operator panel USB cable (D).
4-8
Service Manual
"Operator panel bezel removal" on page
4-7.
