ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed.
Assembly requires a phillips screwdriver
and a rubber mallet

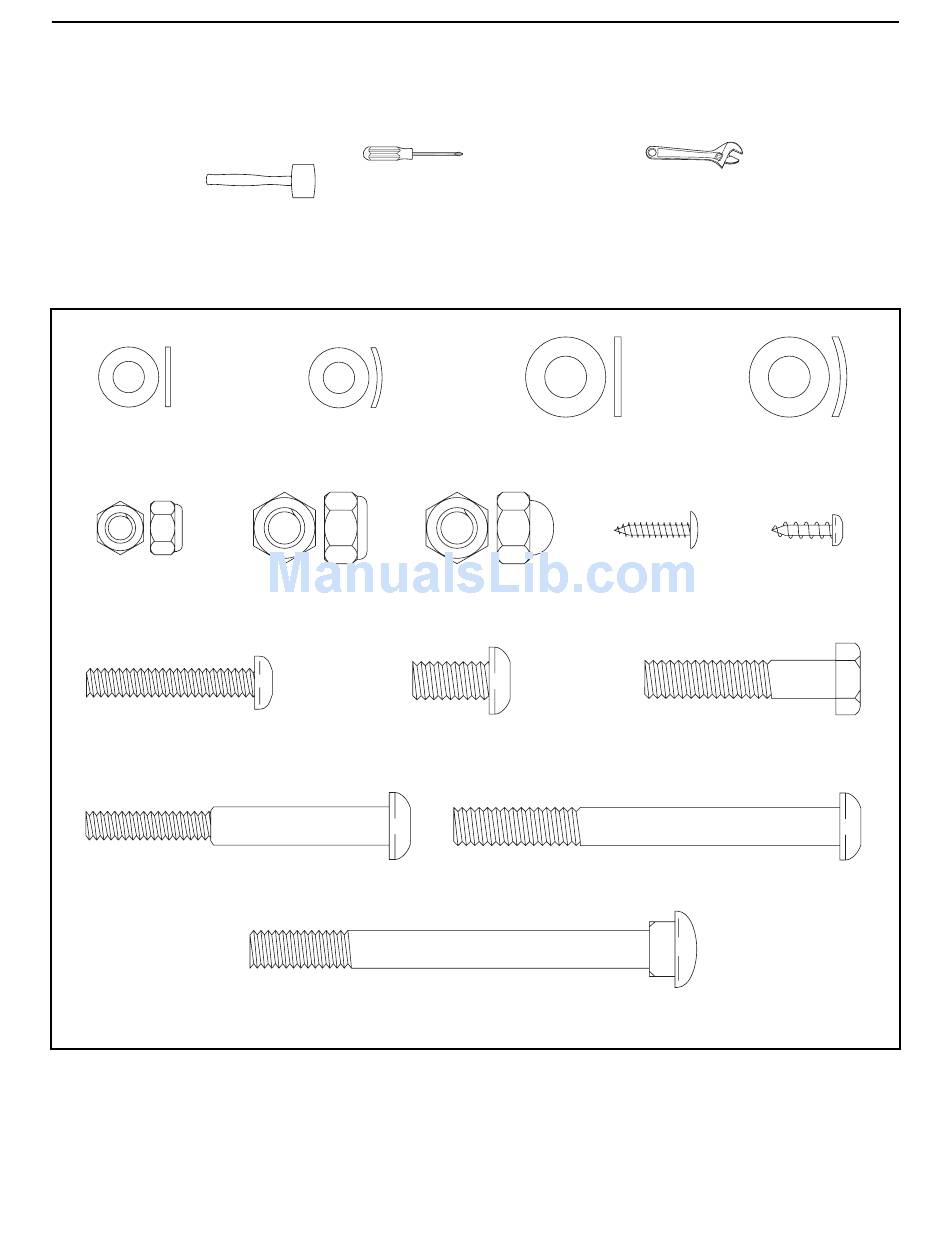

See the drawings below to identify the small parts needed for assembly. The number in parentheses below
each drawing is the key number of the part, from the PART LIST on page 22. The number following the key
number is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a part
is not in the parts bag, check to see if it has been preassembled.
M6 Washer
(55)–2
M6 Nylon
Locknut (56)–6
M6 x 1 3/8" Button
Bolt (46)–4
M6 x 2 1/2" Button
Shoulder Bolt (40)–2
.
M6 Arc
Washer (39)–4
M8 Nylon
Locknut (57)–4
M8 x 5/8" Button
Screw (45)–6
M8 x 3 1/2" Carriage Bolt (51)–2
, an adjustable wrench
M8 Washer
(52)–4
M8 Cap Nut
Screw (68)–4
(24)–2
M8 x 3 3/8" Button Screw (42)–2
4
,
M8 Arc
Washer (54)–8
M4 x 1/2"
Console
Screw (49)–16
M8 x 1 9/16" Hex Bolt (41)–4
