Peripherals - Intergraph Rack-Mount Workstation/Server System Reference Manual

9 Peripherals

This chapter provides information on configuring peripherals in all rack-mount systems.
Up to six SCSI devices may be added to the system drive bays. The following table defines the
standard drive locations when drives are factory installed.
Location
1 - Left Vertical
2 - Right Vertical
3 - Left Internal
4 - Right Internal
5 - Lower Horizontal
6 - Upper Horizontal
NOTE The SCSI cable MCBL234A provides active termination. All SCSI devices installed in the system
must have termination disabled.

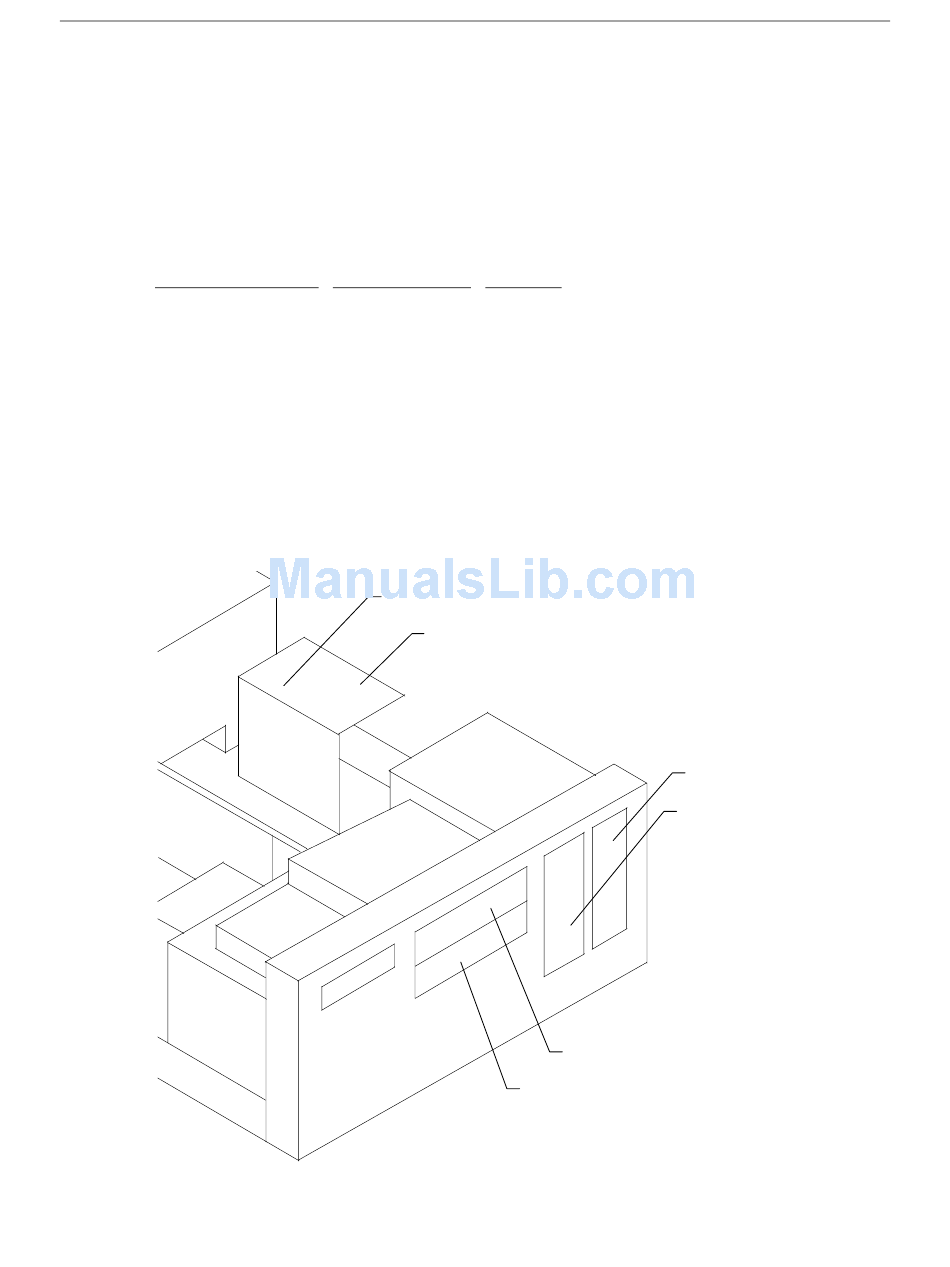

The following figure shows the physical drive locations in the system.
Drive SCSI ID
System disk drive 0
Add-on disk drive 1
Add-on disk drive 2
Add-on disk drive 3
CD-ROM drive 4
Other drive type 5 or 6
Location 3
Location 4
Location 2
Location 1
Location 6
Location 5
73
