SCSI CD-ROM Drive (CDSK178)

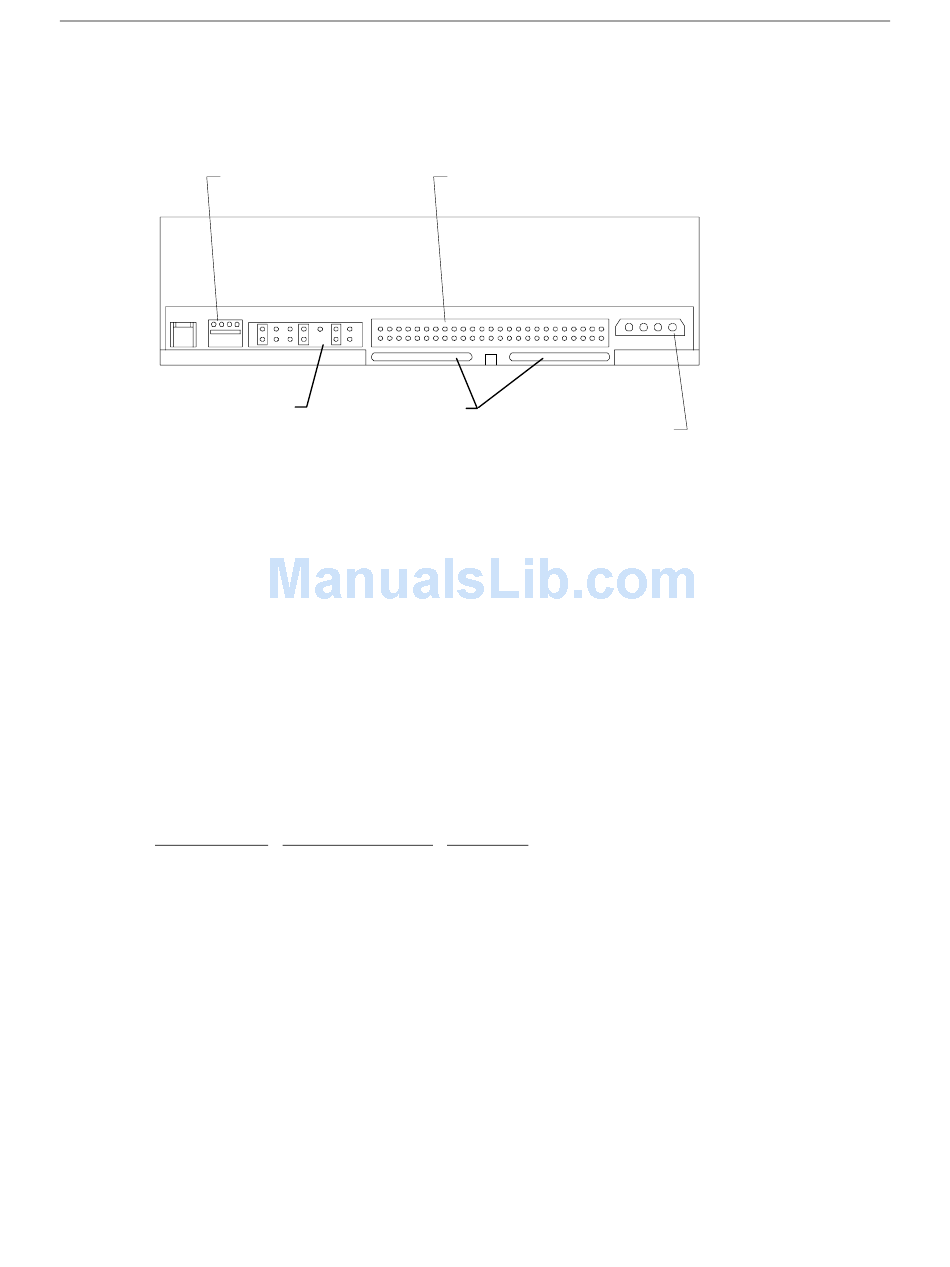

The following figure shows the back of the CD-ROM drive.
Audio Connector
Mode Select
Header
u
The audio connector uses MCBLZ630 and connects to J22 on the system board. Refer to Chapter
5 or 6 for the cable pinout.
u
The SCSI connector uses MCBL234A and connects to the riser card.
u
Settings for mode select header, which sets SCSI ID, parity, and other drive functionality are
printed on the CD-ROM drive.
u
Terminator resistors are installed in the terminator sockets only when active termination is
required. By default, these sockets are empty since termination is provided by the SCSI cable.
u
The power connector uses power supply cable P6 from the power supply. Refer to Chapter 10,
"Power Supply and Fans," for the cable pinout.

Disk Drives

Any of the following disk drives can be used in the system.
Part Number
CDSK098
CDSK111
CDSK094
CDSK123
CDSK164
CDSK167
CDSK165
CDSK166
SCSI Connector
Terminator
Sockets
Vendor Number Capacity
Conner CFP4207S 4 GB
Seagate ST51080N 1 GB
Seagate ST32155N 2 GB
Seagate ST34371N 4 GB
Seagate ST34501N 4 GB
Seagate ST34501W 4 GB
Seagate ST19101N 9 GB
Seagate ST19101W 9 GB
Power
Connector
