8 Riser Card MSMT463

This chapter describes the components on the riser card MSMT463 and the graphics card

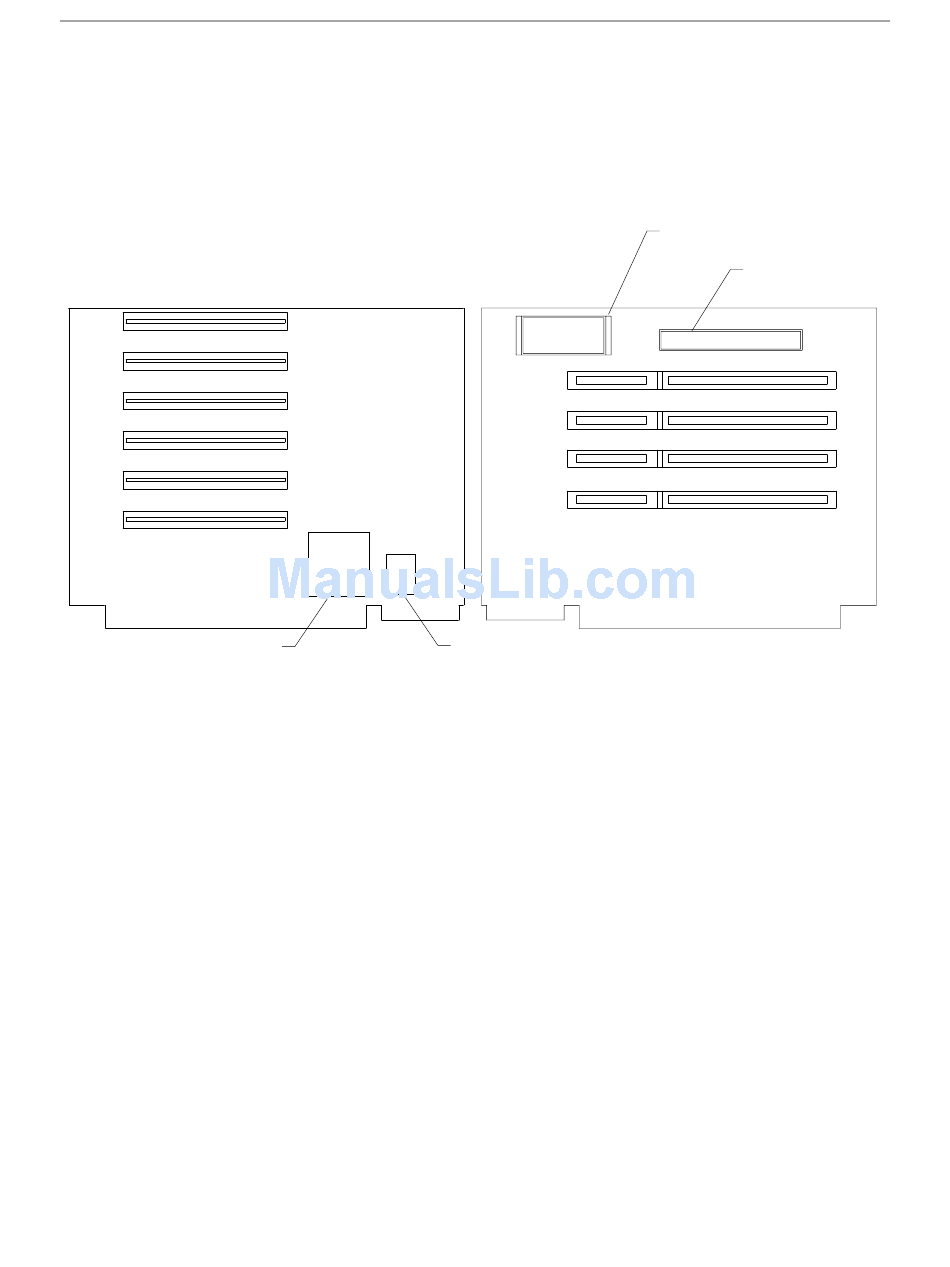

configurations. The following figure shows the riser card.
Side One
PCI 1
PCI 2
PCI 3
PCI 4
PCI 5
PCI 6
Programmable Part
(Secondary PCI Bus)

Expansion Slots

The riser card has six PCI slots and four ISA slots. PCI slots 5 and 6 are on the primary PCI bus,
supported by the PCI bridge on the system board. PCI slots 1 through 4 (secondary) are supported by
an Intergraph programmable part on the riser card. Some PCI option boards must be installed in a
primary PCI slot, as stated in the documentation delivered with the option board.
Systems with the MSMT359 system board have onboard G95 video. Other systems that do not use
onboard G95, such as RenderRAX, use the G95 card (MSMT340) in PCI slot 5, or other graphics
board in specified slots (see below).
NOTE Full-length PCI cards cannot be installed in PCI slot 6 if the processor module is installed on system
board MSMT353. The processor module is used in quad-processor systems only.

Internal SCSI Controller

The system's internal SCSI controller is the Adaptec AIC-7880. All internal SCSI devices use the
AIC-7880.
Side Two
ISA 1
ISA 2
ISA 3
ISA 4
Internal SCSI
Controller (AIC-7880)
Power Connector
SCSI Connector
