Cdsk094 (2 Gb); Cdsk098 (4 Gb) - Intergraph Rack-Mount Workstation/Server System Reference Manual

76

CDSK094 (2 GB)

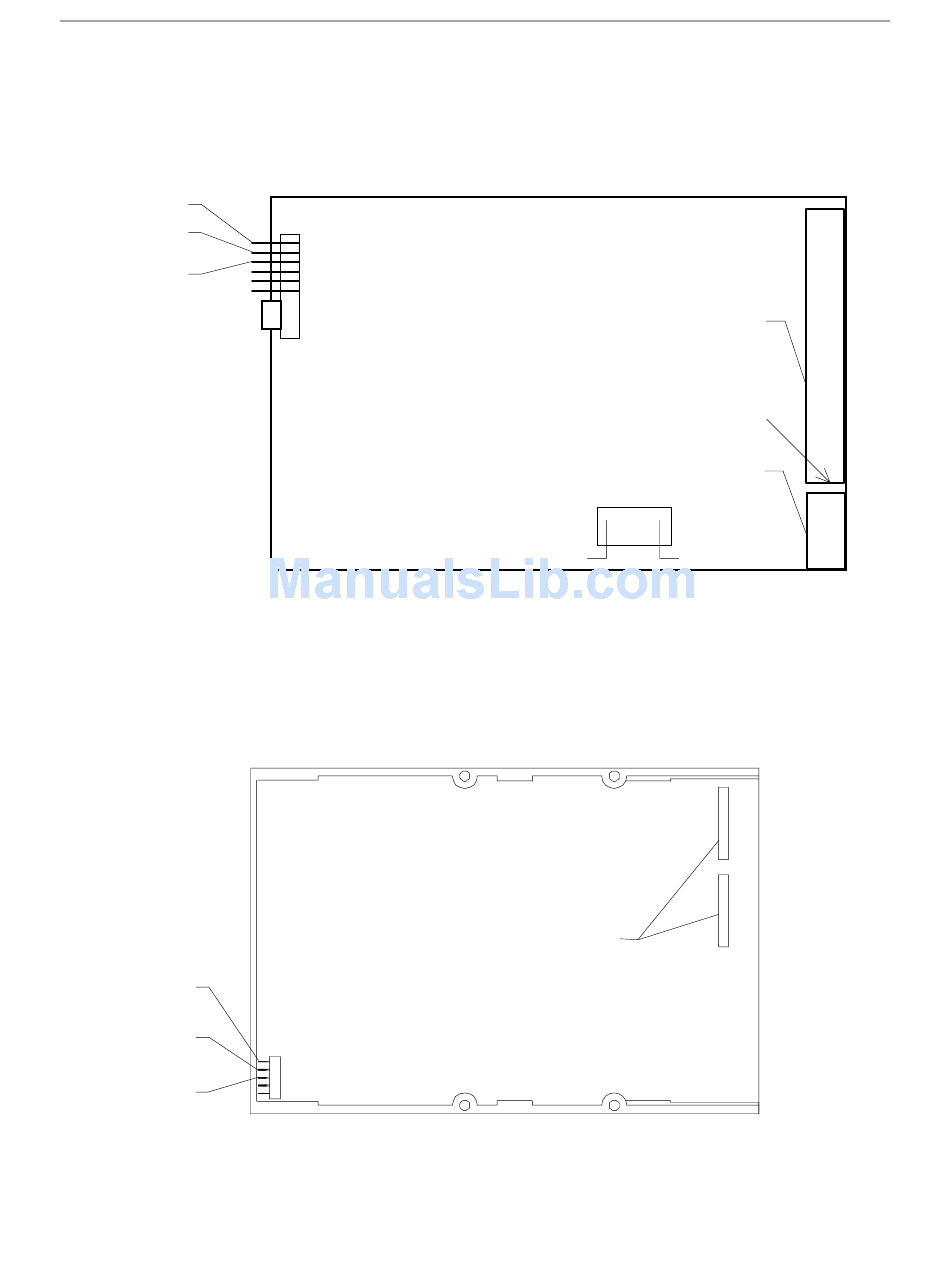

The following figure shows the jumper connectors J6 and J2 on the Seagate 2 GB disk drive. SCSI ID
selection uses the ID1, ID2, and ID4 jumpers on connector J6. To disable SCSI termination, remove
the TE jumper from connector J2.
ID1
ID2
ID4

CDSK098 (4 GB)

The following figure shows the jumper connector J5 and SCSI terminator sockets on the Conner 4 GB
disk drive. Connectors 0E1 through 0E3 are also available on a jumper block near the SCSI
terminator sockets; do not install jumpers on these connectors. To enable SCSI termination, install
the proper resistors into both terminator sockets. To disable SCSI termination, remove both resistors
from the sockets.
0E1
0E2
0E3
J6
J5
J2
oooooooo
oooooooo
TE
SCSI Terminator
Sockets
SCSI
Connector
Pin 1
Power
Connector
TP
