6 System Board MSMT378

This chapter provides information about board connectors, the sound controller, and address
resources for the MSMT378 system board, which uses Pentium II processors. Refer to "Board
Combinations" in Chapter 4 for details on board types used in the various workstations and servers.

Connectors

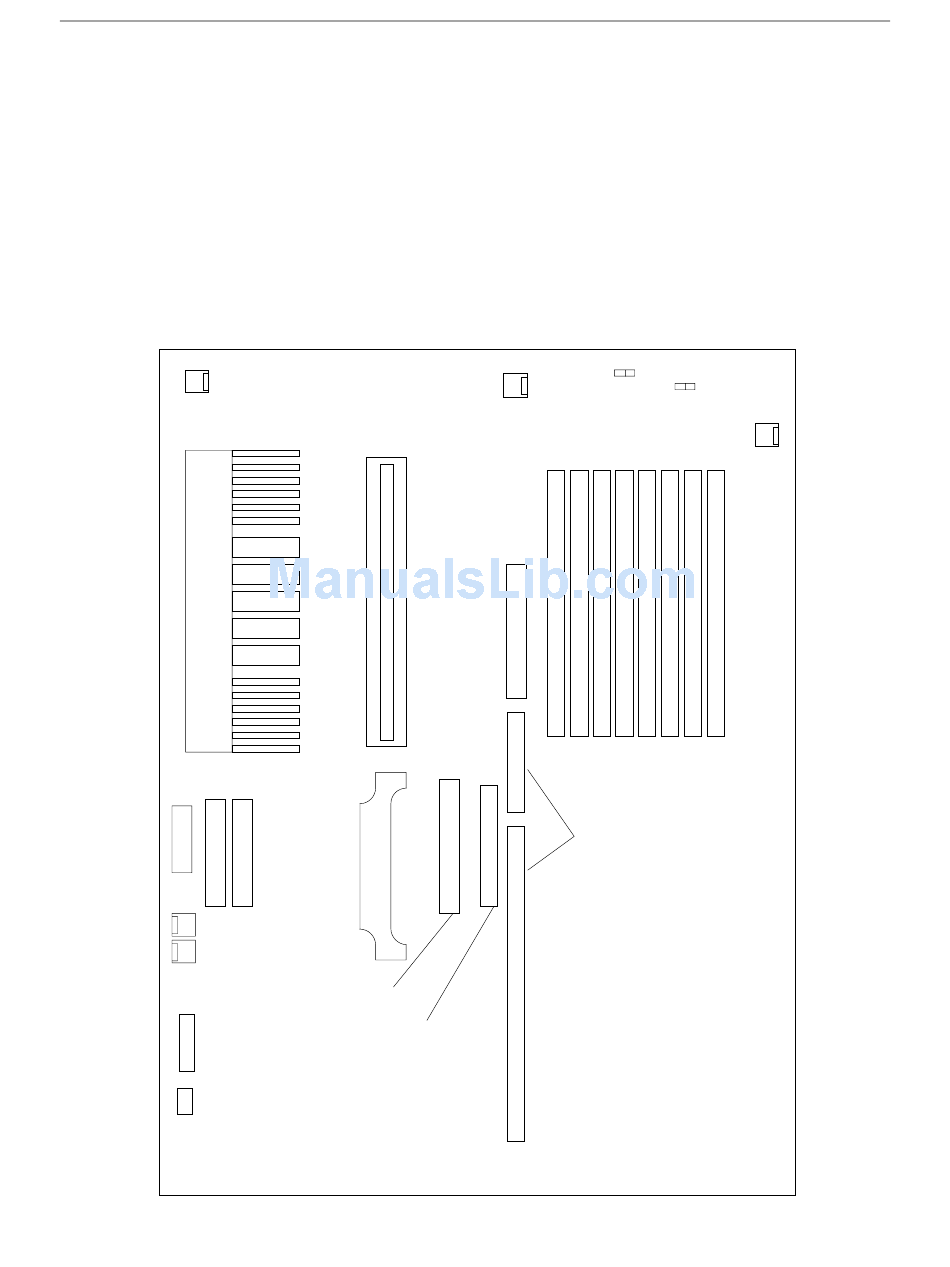

The following figure shows the internal connector locations.
Fan Power - J64
CPU 0
Fan Power - J14
Fan Power - J12
MIDI - J17
Audio - J22
Fan Power - J70
Socket for
CPU 1
SCSI -
J43
VRM
IDE - J32
Floppy - J30
Power On LED - J72
Disk Activity
LED - J73
Fan Power - J68
J51 J58
Memory Sockets
Riser Card
Connectors
53
