NEC SuperScript 660plus User Manual page 21

Chapter 2: Setting Up and Using the Printer

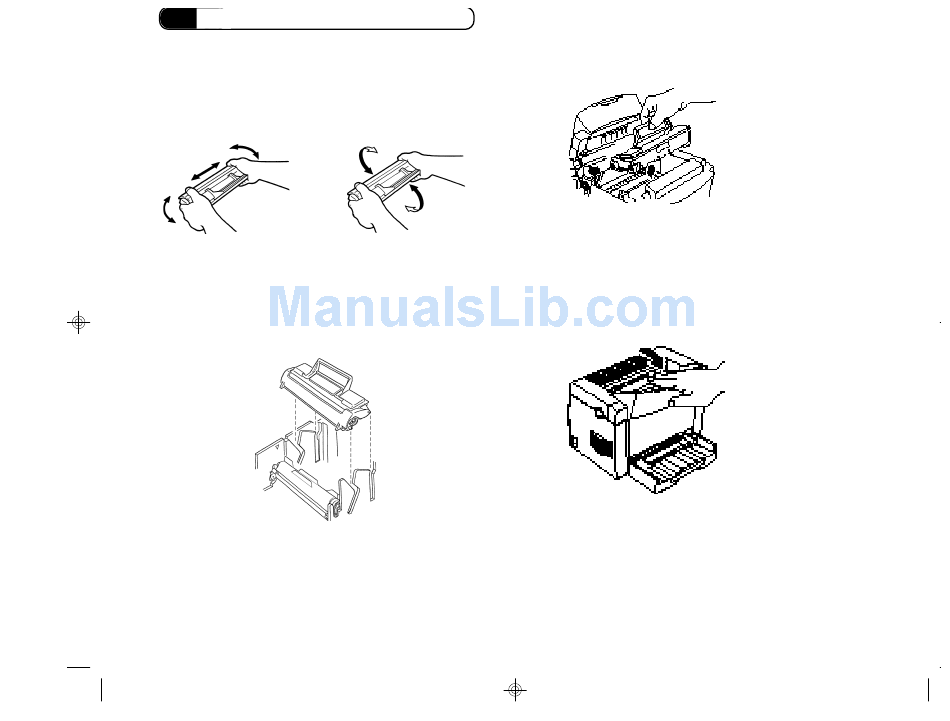

4. Unpack the toner module from its carton.
Holding the toner module with both hands, shake
it gently but firmly in the directions of the arrows.
5. Install the toner module in the printer, making sure
that the four pins of the toner module (two at the
front and two at the rear) align with the slits inside
the printer frame, and slide it securely in position.
2—12
03 Ch.2 Setting Up 12
6. Swing the top cover down and press the front
down to lock it into position.
96.9.24, 11:09 AM
