External Printer Parts

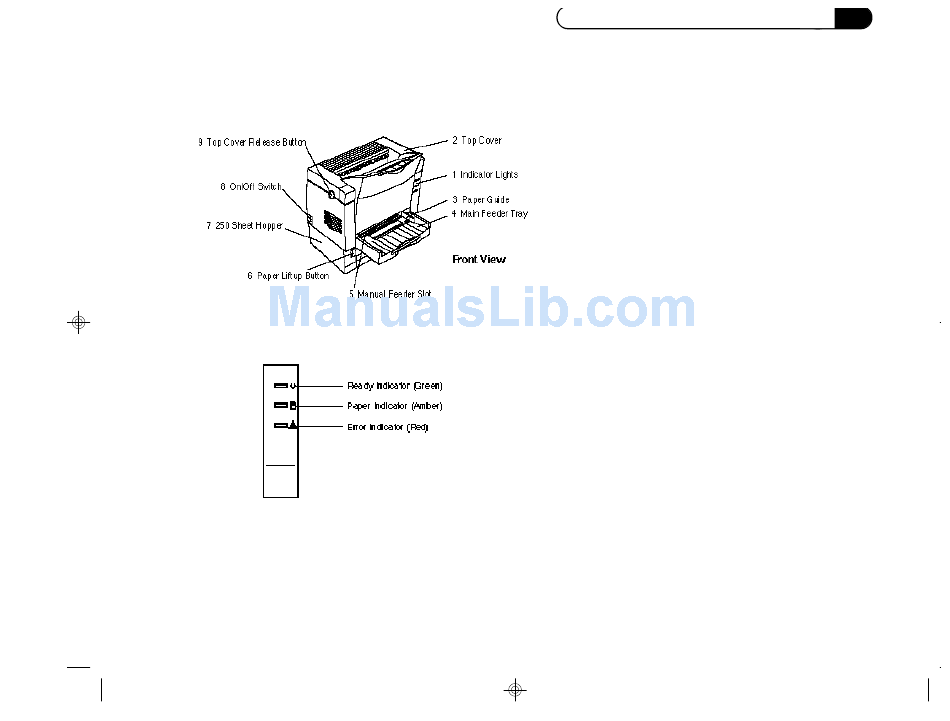

The following is an external view of the printer and its
parts.
1. Indicator Lights – three LED lights that indicate the
operating status of the printer.
03 Ch.2 Setting Up 5
Chapter 2: Setting Up and Using the Printer
• Ready Indicator light – the upper light shows that
the printer is ready (steady green), warming up,
processing a job (rapid blink), or in power saving
mode (slow blink).
• Paper Indicator Light – the middle light shows
that the printer detects that the paper tray is empty
(steady amber), or that you are using the manual
feed (blinking).
• If you have the second hopper installed, "Pick
Miss" will appear on your screen if the paper did
not feed.
• Error Indicator – the lower light shows that the
printer detects that the cover is open, that there is
no toner module, no photoconductor module, or
that there is a paper jam (steady red), or that there
is a data error (blinking).
All indicators light when the printer is turned on, or
when there is a printer hardware error.
2. Top Cover (and output tray) – provides access to
the inside of the printer and, when printing, serves
as an output tray. It stacks the printed sheets with
the printed side facing down.
Maximum capacity: 100 sheets. (17 lb. paper)
3. Paper Guide – slides to the size of the paper.
(Main Feeder)
