Bar Code Human Readable Text

Certain bar codes require human readable text and/or extended bars to conform to
specifications. This is accomplished by using specially created TCI's (refer to section 5.6.5
or table 19) which add the human readable text and extended bars. This section will
provide the necessary information to successfully add these items. This should not be
confused with simply making all bar codes human readable. For bar codes that do not
require extended bars, simply access the data that the bar code is using with a second field
that generates a text representation of the data and insert in the desired position.
TCI VALUE
3
17
22
23
28
29
32
33
Table 19
322M Operator's Manual
ROTATIONS

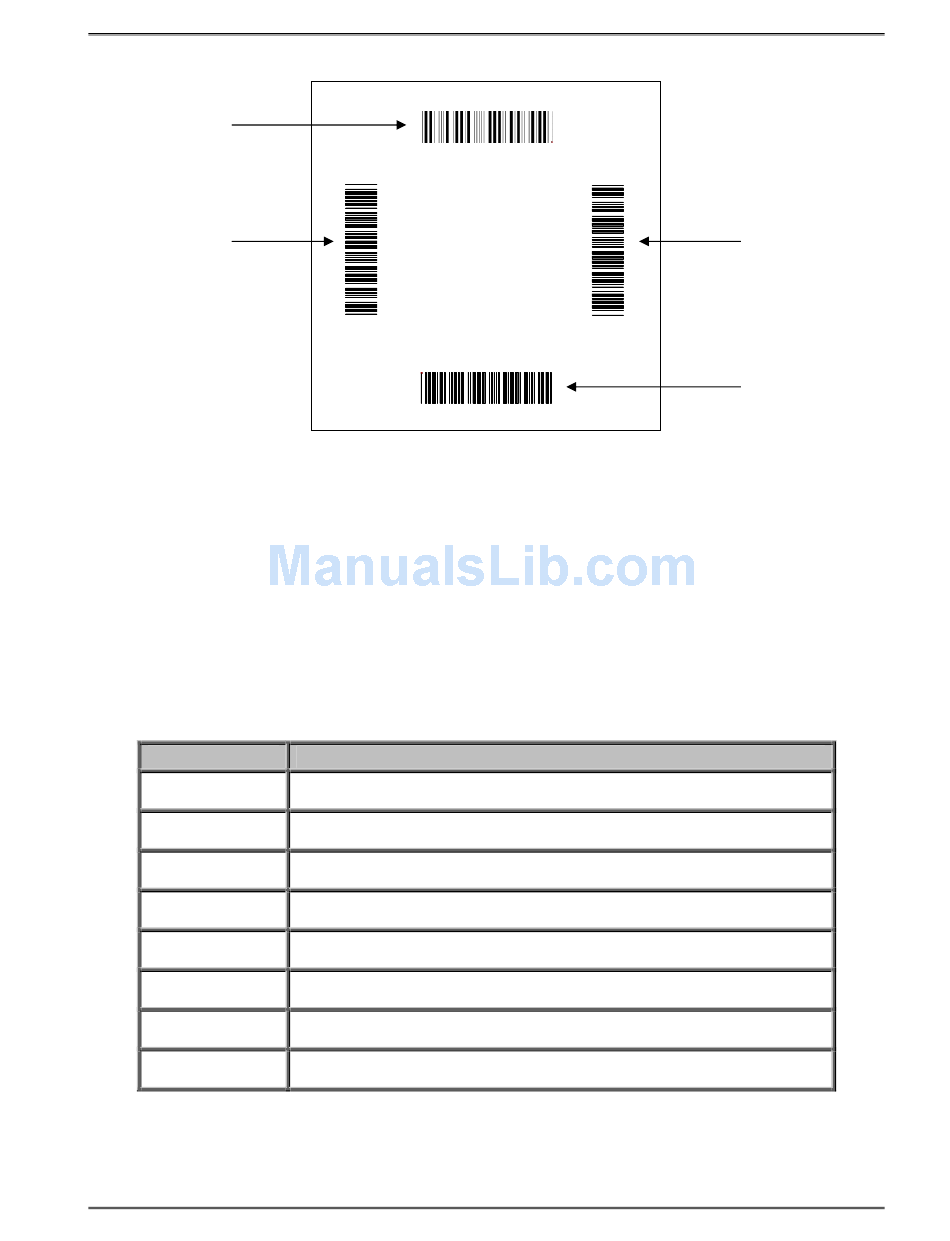

Figure 18 Bar Code Rotations
TCI DESCRIPTION
Text with UPC-A/UPC-E Checksum Digit added.
Text with UPC-E Checksum and Extended Bars added
Text with EAN-13 Checksum and Extended Bars added
Text with EAN-8 Checksum and Extended Bars added
Text with MSI 1 Checksum added
Text with MSI 2 Checksum added
Text with UPC-A Checksum and Extended Bars added
Text with UPC-A with Extended Bars added
Human Readable/Extended Bars TCI's
Bar Codes
90
Degrees
0
Degrees
