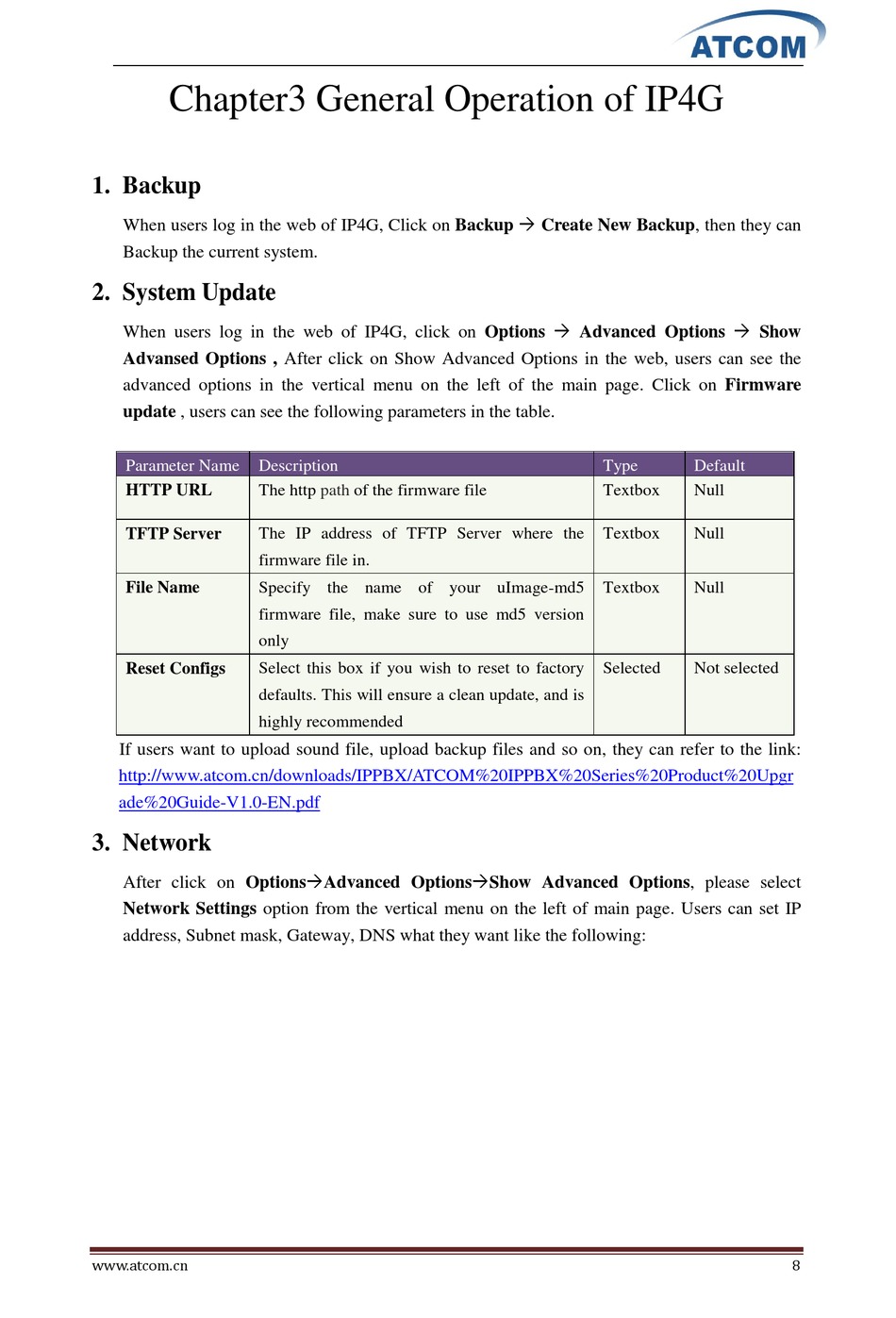

Chapter3 General Operation of IP4G

1. Backup
When users log in the web of IP4G, Click on Backup  Create New Backup, then they can
Backup the current system.
2. System Update
When users log in the web of IP4G, click on Options  Advanced Options  Show
Advansed Options , After click on Show Advanced Options in the web, users can see the
advanced options in the vertical menu on the left of the main page. Click on Firmware
update , users can see the following parameters in the table.
Parameter Name Description
HTTP URL The http
TFTP Server The IP address of TFTP Server where the
firmware file in.
Specify the name of your uImage-md5
File Name
firmware file, make sure to use md5 version
only
Reset Configs Select this box if you wish to reset to factory
defaults. This will ensure a clean update, and is
highly recommended
If users want to upload sound file, upload backup files and so on, they can refer to the link:
http://www.atcom.cn/downloads/IPPBX/ATCOM%20IPPBX%20Series%20Product%20Upgr
ade%20Guide-V1.0-EN.pdf
3. Network
After click on OptionsAdvanced OptionsShow Advanced Options, please select
Network Settings option from the vertical menu on the left of main page. Users can set IP
address, Subnet mask, Gateway, DNS what they want like the following:
www.atcom.cn
path of the firmware file
Type Default
Textbox Null
Textbox Null
Textbox Null
Selected Not selected
