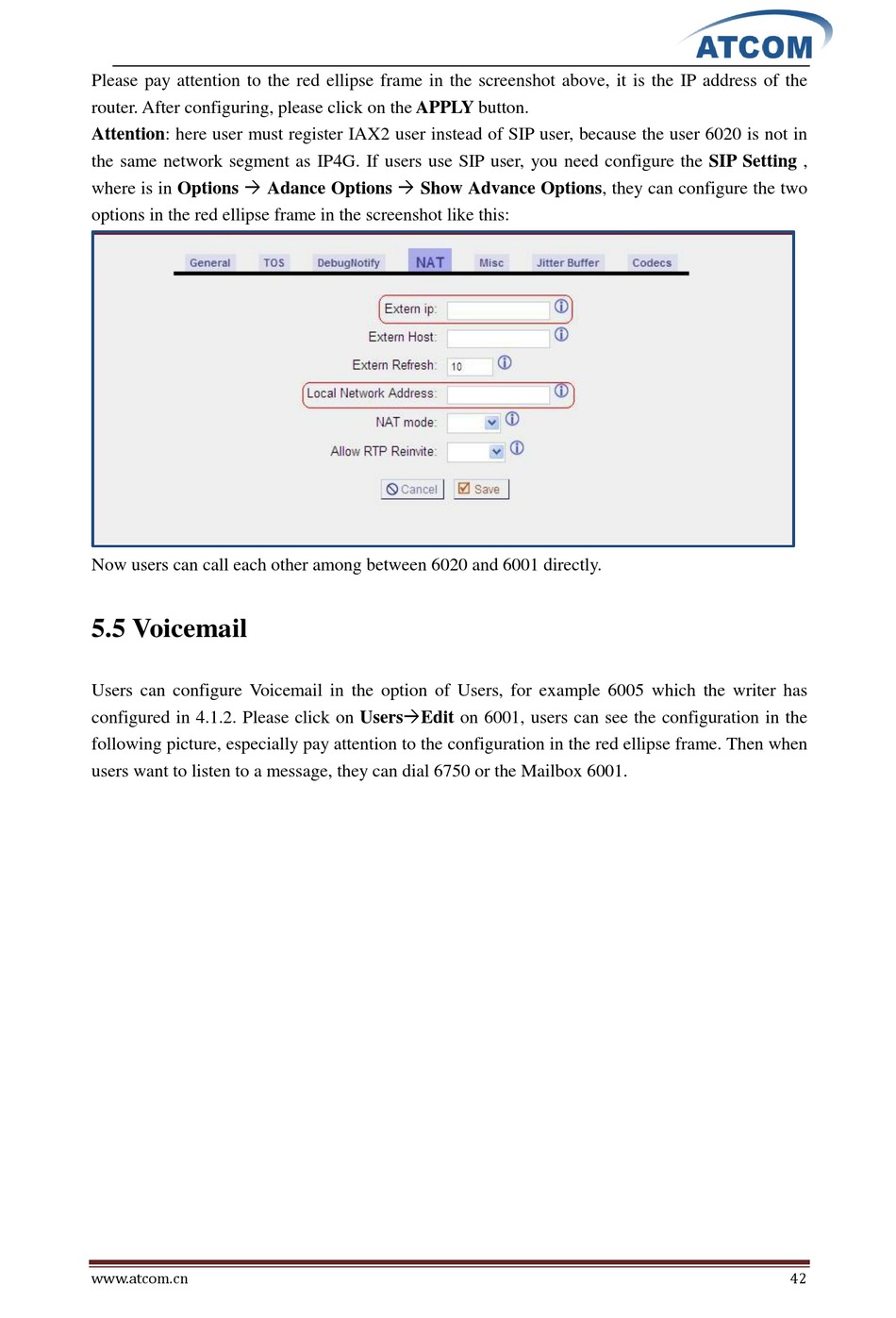

Voicemail - ATCOM IPPBX IP4G Product Manual

Please pay attention to the red ellipse frame in the screenshot above, it is the IP address of the
router. After configuring, please click on the APPLY button.
Attention: here user must register IAX2 user instead of SIP user, because the user 6020 is not in
the same network segment as IP4G. If users use SIP user, you need configure the SIP Setting ,
where is in Options  Adance Options  Show Advance Options, they can configure the two
options in the red ellipse frame in the screenshot like this:
Now users can call each other among between 6020 and 6001 directly.

5.5 Voicemail

Users can configure Voicemail in the option of Users, for example 6005 which the writer has
configured in 4.1.2. Please click on UsersEdit on 6001, users can see the configuration in the
following picture, especially pay attention to the configuration in the red ellipse frame. Then when
users want to listen to a message, they can dial 6750 or the Mailbox 6001.
www.atcom.cn 42
