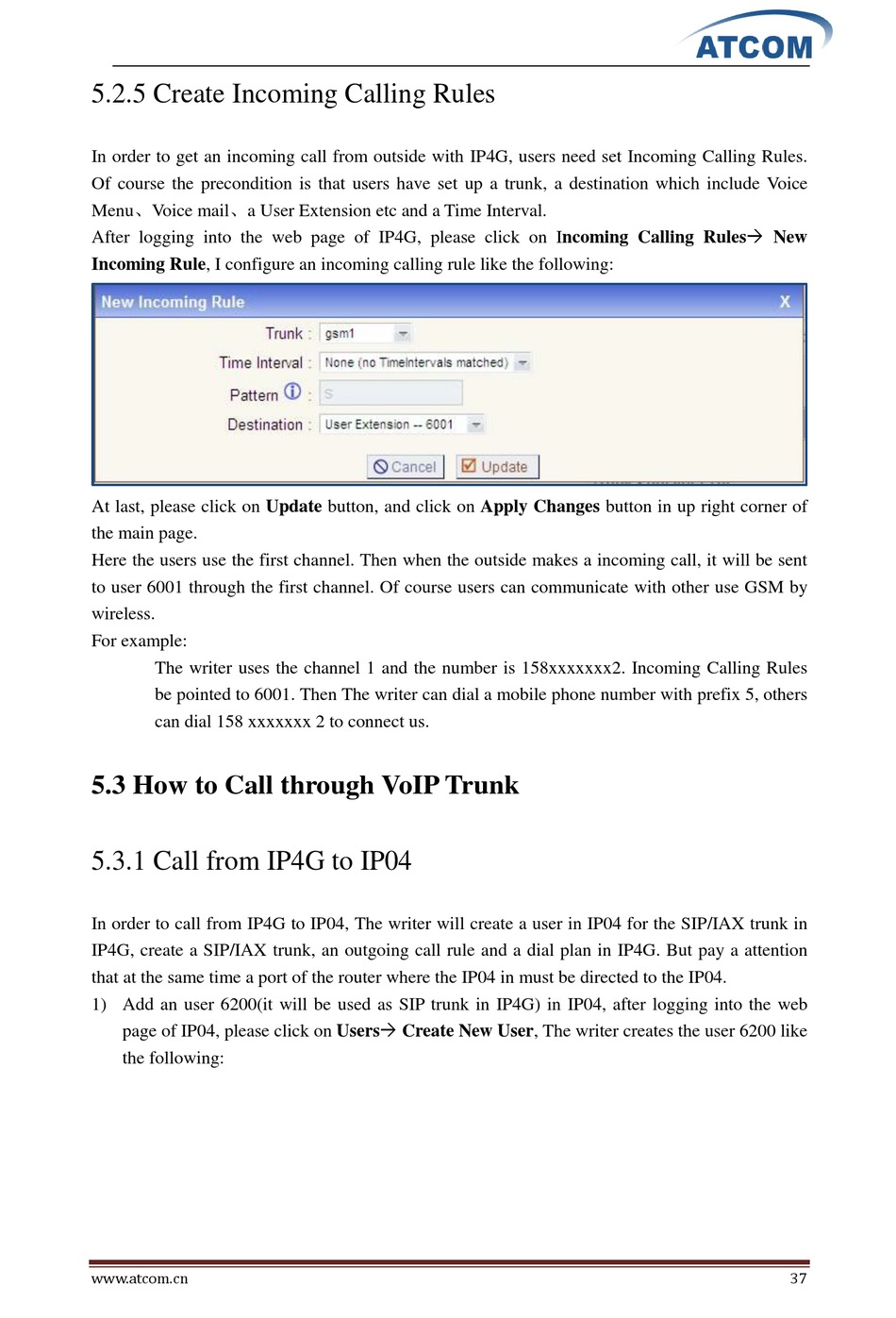

5.2.5 Create Incoming Calling Rules

In order to get an incoming call from outside with IP4G, users need set Incoming Calling Rules.
Of course the precondition is that users have set up a trunk, a destination which include Voice
Menu、Voice mail、a User Extension etc and a Time Interval.
After logging into the web page of IP4G, please click on Incoming Calling Rules New
Incoming Rule, I configure an incoming calling rule like the following:
At last, please click on Update button, and click on Apply Changes button in up right corner of
the main page.
Here the users use the first channel. Then when the outside makes a incoming call, it will be sent
to user 6001 through the first channel. Of course users can communicate with other use GSM by
wireless.
For example:
The writer uses the channel 1 and the number is 158xxxxxxx2. Incoming Calling Rules
be pointed to 6001. Then The writer can dial a mobile phone number with prefix 5, others
can dial 158 xxxxxxx 2 to connect us.

5.3 How to Call through VoIP Trunk

5.3.1 Call from IP4G to IP04

In order to call from IP4G to IP04, The writer will create a user in IP04 for the SIP/IAX trunk in
IP4G, create a SIP/IAX trunk, an outgoing call rule and a dial plan in IP4G. But pay a attention
that at the same time a port of the router where the IP04 in must be directed to the IP04.
1) Add an user 6200(it will be used as SIP trunk in IP4G) in IP04, after logging into the web
page of IP04, please click on Users Create New User, The writer creates the user 6200 like
the following:
www.atcom.cn 37
