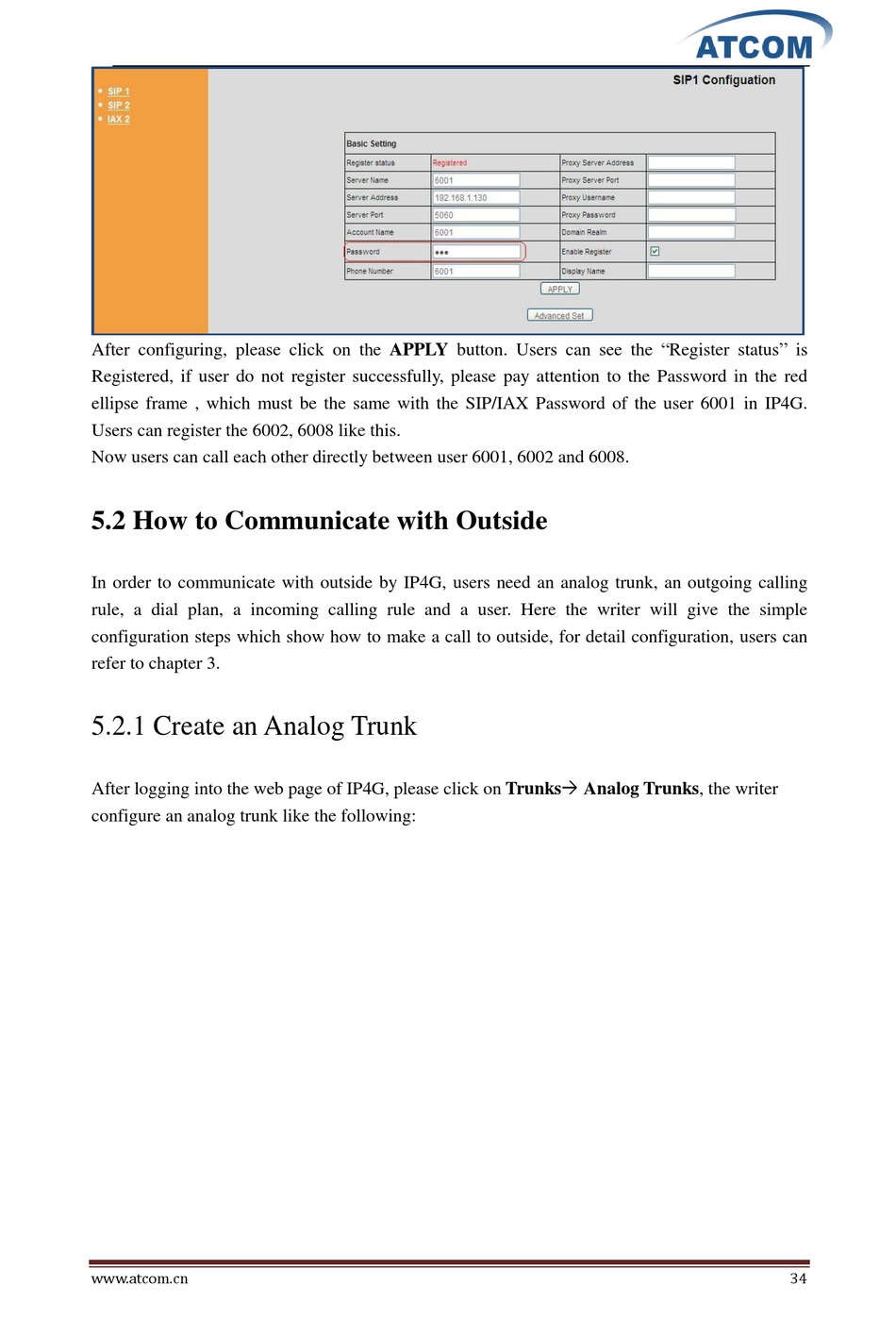

After configuring, please click on the APPLY button. Users can see the "Register status" is
Registered, if user do not register successfully, please pay attention to the Password in the red
ellipse frame , which must be the same with the SIP/IAX Password of the user 6001 in IP4G.
Users can register the 6002, 6008 like this.
Now users can call each other directly between user 6001, 6002 and 6008.

5.2 How to Communicate with Outside

In order to communicate with outside by IP4G, users need an analog trunk, an outgoing calling
rule, a dial plan, a incoming calling rule and a user. Here the writer will give the simple
configuration steps which show how to make a call to outside, for detail configuration, users can
refer to chapter 3.

5.2.1 Create an Analog Trunk

After logging into the web page of IP4G, please click on Trunks Analog Trunks, the writer
configure an analog trunk like the following:
