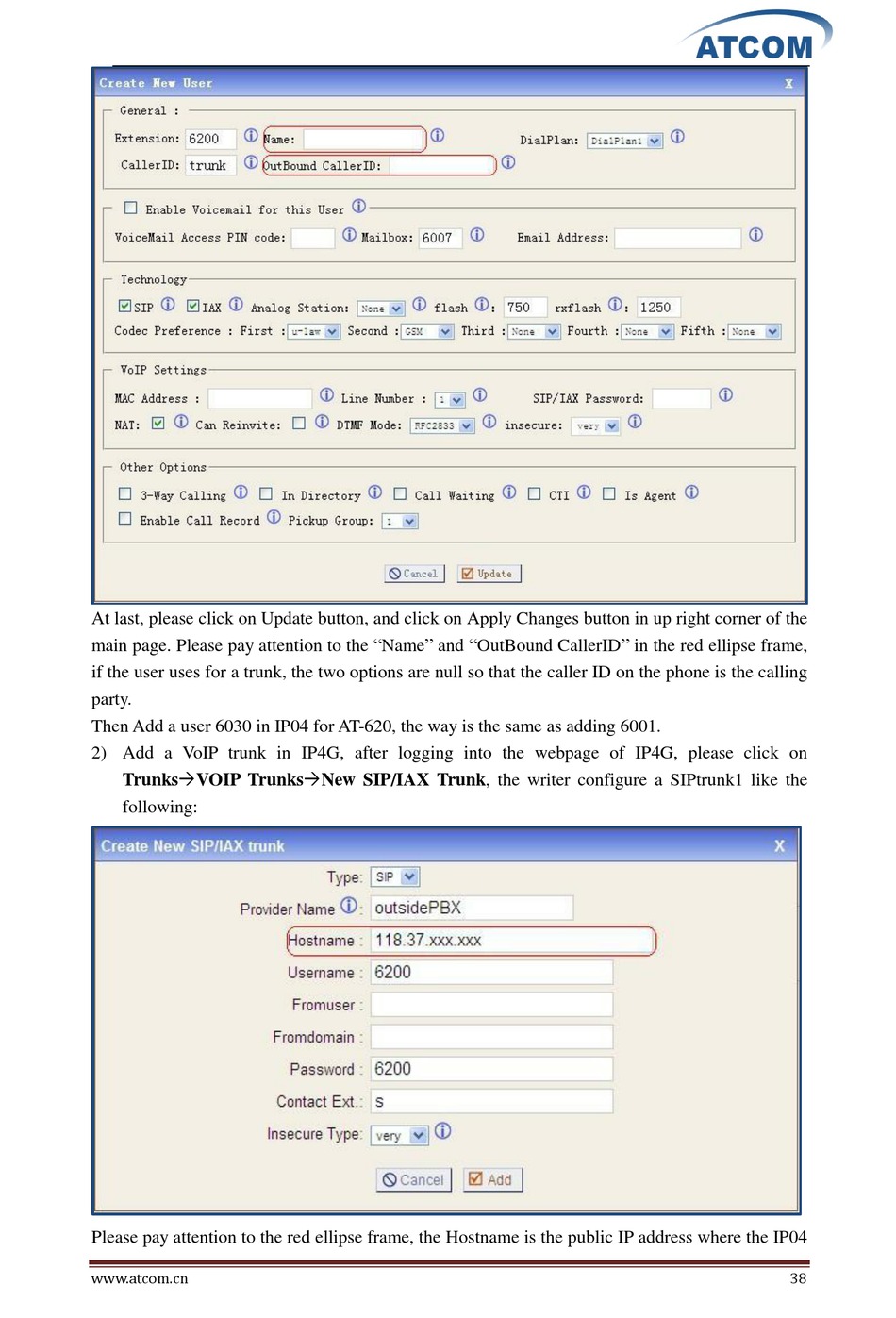

At last, please click on Update button, and click on Apply Changes button in up right corner of the
main page. Please pay attention to the "Name" and "OutBound CallerID" in the red ellipse frame,
if the user uses for a trunk, the two options are null so that the caller ID on the phone is the calling
party.
Then Add a user 6030 in IP04 for AT-620, the way is the same as adding 6001.
2) Add a VoIP trunk in IP4G, after logging into the webpage of IP4G, please click on
TrunksVOIP TrunksNew SIP/IAX Trunk, the writer configure a SIPtrunk1 like the
following:
Please pay attention to the red ellipse frame, the Hostname is the public IP address where the IP04
www.atcom.cn 38
