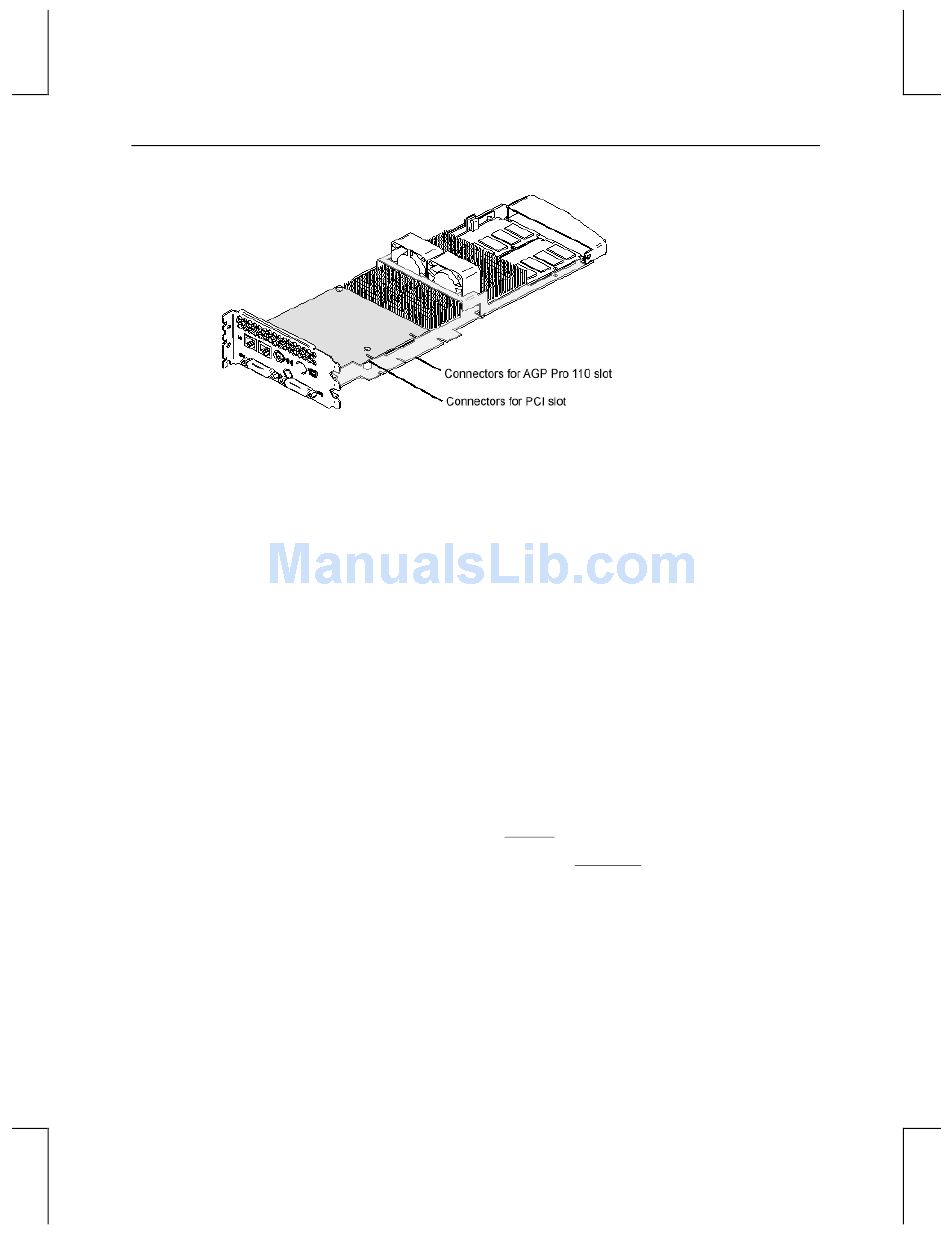

Figure 2. Expansion slots connectors
5. Push the card into the expansion slots firmly and evenly until it is fully seated in the slot
connectors.
6. Visually inspect the connections. If they do not appear to be correct, remove and reinstall the
card.
7. Use the screws you removed previously to secure the card to the computer's chassis.
8. Close the computer and reconnect the power cord.

Connecting Monitors

Refer to the documentation delivered with the computer's monitors for information on the type of
connection required. The monitor cables will have either a Digital Video Interface (DVI)-I
connector or a 15-pin VGA connector.
To connect DVI monitors:
1. Turn off power to the computer and to the monitors.
2. Connect the cable for a single monitor to the Primary DVI-I port (see Figure 3).
3. If needed, connect the cable for a second monitor to the Secondary DVI-I port.
NOTE Multiple monitor support is available only under Windows 2000. If you are
connecting two monitors to the Wildcat 4210, see Chapter 3, "Using the Wildcat
4210," for information about configuring dual displays.
4. Turn on power to the computer and to the monitors. If the monitors' Power On LEDs do not
illuminate or the monitors do not display, refer to Chapter 4, "Troubleshooting."
