Hardware; Software; Connecting Monitors - Intergraph Intense3D Wildcat 4000 Hardware User's Manual

2

Hardware

A single-screen Intense 3D Wildcat 4000 configuration uses a basic two-card set. Multi-
screen configurations use the basic two-card set and one or more Intense 3D Wildcat 4000
multi-screen options.
Intense 3D Wildcat 4000 requires the use of these expansion slots:
Number of Screens
Single screen
Additional screens (up to four)

Software

Intense 3D Wildcat 4000 uses the Intense 3D Wildcat 4000 video display driver. The video
display driver installs as a standard Windows NT driver, and provides both GDI and OpenGL
graphics compatibility.
Intense 3D Wildcat 4000 can use Intergraph's Heidi Device Driver, which works with the
video display driver to support software applications based on the Heidi graphics library.
Intense 3D Wildcat 4000 also works with applications built with Intergraph's RenderGL
graphics library. RenderGL works with OpenGL to enable hardware acceleration of high-
quality, photorealistic features on 3D models.

Connecting Monitors

In a workstation purchased with Intense 3D Wildcat 4000, the appropriate cards are already
installed in the workstation base unit.
To connect monitors to Intense 3D Wildcat 4000:

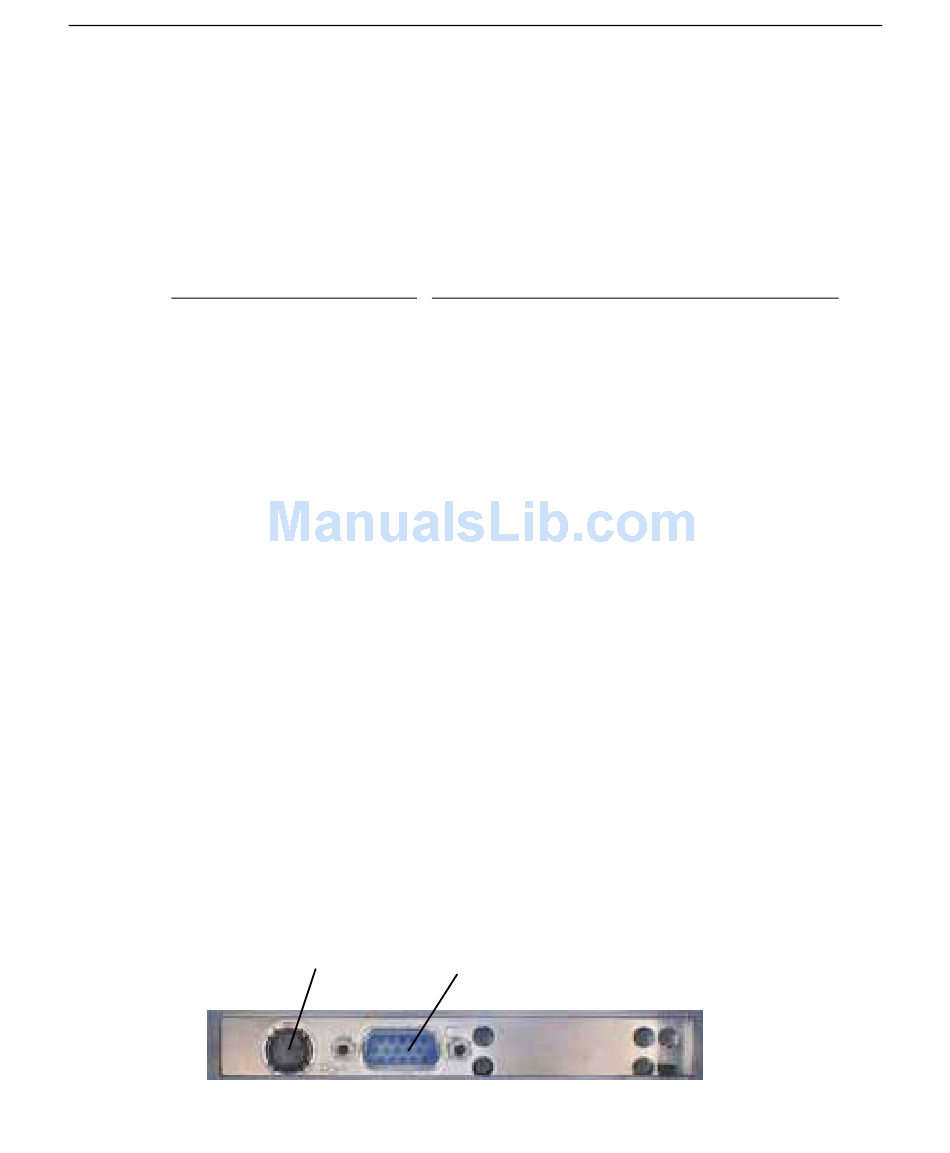

1. Connect the workstation monitor's video cable to the blue video output port on the
Intense 3D Wildcat 4000 two-card set. See the following figure.
Expansion Slots
One Advanced Graphics Port (AGP) slot
Two Peripheral Component Interconnect (PCI) slots
Two additional PCI slots for each additional screen
Stereo Sync
Video Output
Output Port
Port (blue)
