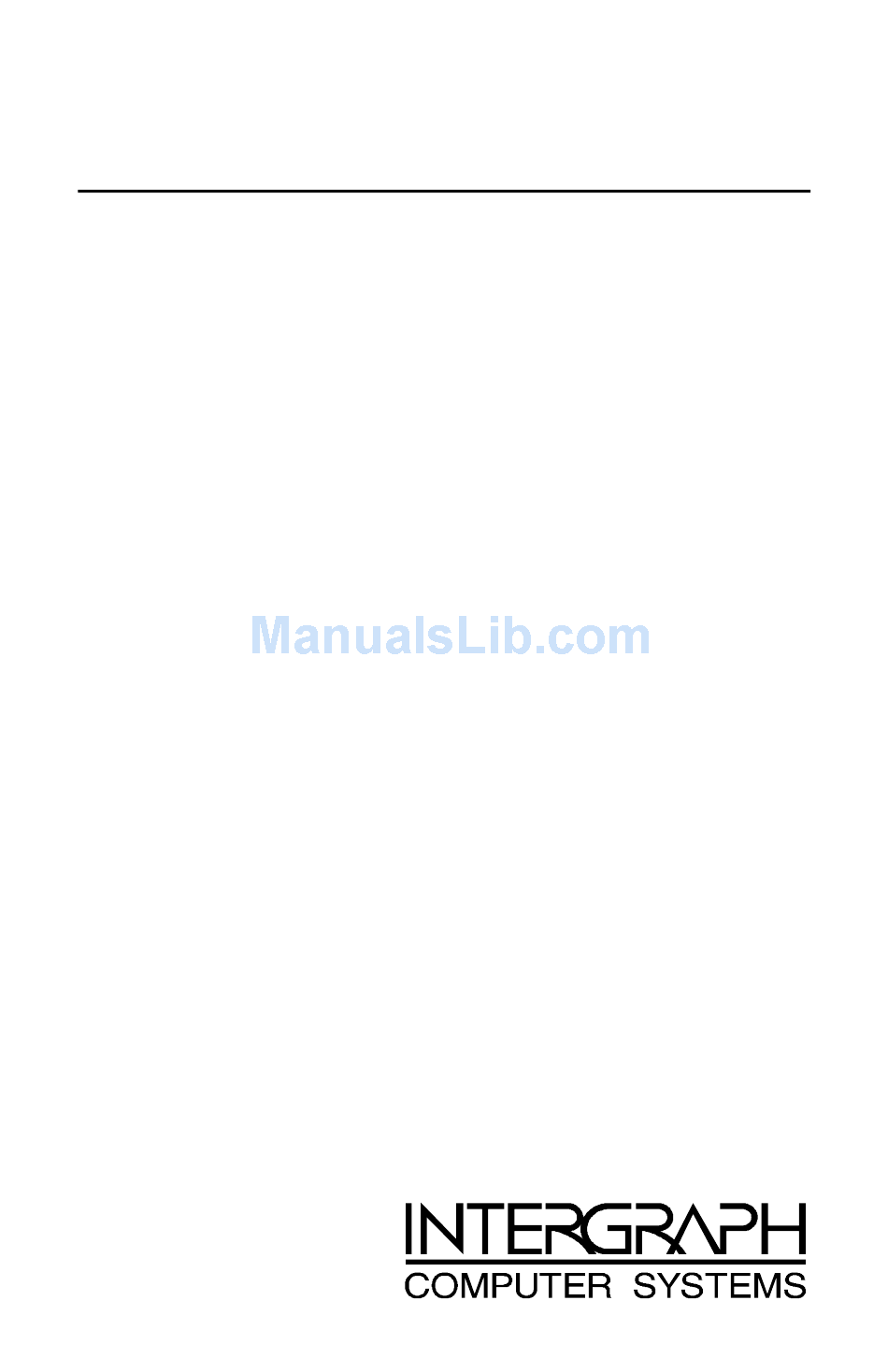

- Page 1 Intense 3D Pro 1000 Installation Guide April 1998 DHA024910...
- Page 2 All warranties given by Intergraph Computer Systems about equipment or software are set forth in your purchase contract. Nothing stated in, or implied by, this document or its contents shall be considered or deemed a modification or amendment of such warranties.
- Page 3 (3) years from the date of purchase. If the product should become defective within the warranty period, Intergraph will, at its option, repair or replace it, provided it is delivered at the purchaser’s expense to the place of purchase or to Intergraph. No other warranty is expressed or implied.
- Page 5 Introduction Congratulations! In choosing Intense 3D Pro 1000, you have chosen to equip your personal computer or personal workstation with powerful and professional 3D graphics. Intense 3D Pro 1000 infuses Intel Pentium and Pentium Pro computers running the Microsoft Windows NT operating system with workstation-class 3D graphics features and performance.
- Page 6 Dual-screen capability One additional slot Software Intense 3D Pro 1000 software consists of the Intense 3D Pro driver. The Intense 3D driver installs as a standard Windows NT driver, and provides both GDI and OpenGL graphics compatibility. Intense 3D Pro 1000 can take advantage of Intergraph’s Heidi Device Driver, which works with the Intense 3D Pro video display driver to support software applications based on the Heidi graphics library.
-
Page 7: Preparing For Installation
Preparing for Installation Follow these instructions to prepare your computer for Intense 3D Pro. Make Sure Your Computer Is Ready Make sure your IBM PC-compatible computer has the following: A Pentium or Pentium Pro processor. A high-resolution multi-sync analog RGB monitor. Windows NT 3.51 or Windows NT 4.0 operating system. -
Page 8: Collect Materials And Tools
Collect Materials and Tools Collect the following materials and tools: Intense 3D Pro boards and (if needed) texture memory modules. Diskette containing the Intense 3D Pro driver. Microsoft Windows NT 3.51 Service Pack 4 software (if needed). Flat-head or Phillips screwdriver, as required to prepare your computer’s PCI slots for installation of the option boards. -
Page 9: Installing The Hardware
Installing the Hardware Refer to your computer’s documentation for instructions on opening and closing the computer, identifying PCI expansion slots, disabling on-board graphics acceleration, and adding expansion boards. Add Texture Memory If you want to add texture memory to a Graphics Accelerator, do so before you install the board in the computer. -
Page 10: Start The Installation
Start the Installation To start the installation: 1. Turn off power to the computer and to the monitor. 2. Open the computer to gain access to the PCI expansion slots. 3. If your computer has an installed graphics accelerator, remove it. If your computer has a graphics accelerator integrated onto the system board, disable it. -
Page 11: Using Another Vga Display Device
If installing two Graphics Accelerators for dual screen-capability, connect a video cable from each computer monitor to the blue video output port on each Graphics Accelerator. CAUTION Do not connect the monitor’s video cable to the black VGA input port on an installed Graphics Accelerator. If you do, the computer will boot to a blue screen and stop, or video will not display. - Page 12 2. Connect a video cable (not supplied) from the video output port on the other VGA display device to the black VGA input port on the Graphics Accelerator. Refer to the figure on the previous page. See Chapter 6, “Technical Information,” for detailed information on ports.
-
Page 13: Installing The Software
Installing the Software Refer to the Microsoft Windows NT documentation and online Help for more information on installing drivers and software application programs, and configuring your computer’s video display. Install the Intense 3D Pro Driver To install the Intense 3D Pro driver: 1. -
Page 14: Configure The Video Display
Configure the Video Display In Windows NT 3.51, open Video Config in the Control Panel to run the Video Configuration program. Use Video Configuration to configure the operation of the computer’s video display when it is controlled by the Intense 3D Pro graphics accelerator. In Windows NT 4.0, open Display in the Control Panel to view the Display Properties dialog. - Page 15 In Windows NT 3.51, the video display driver can treat the left or top monitor as the primary screen, while a full desktop extends across both screens. This Primary Left/Top style results in different windowing behaviors than those displayed by default. For example, dialogs display fully and applications maximize on the primary screen;...
-
Page 17: Getting Help
Intense 3D Pro information and driver software. Intergraph Bulletin Board Service If your computer has a modem, log on to the Intergraph Bulletin Board Service (IBBS). You can use the IBBS to get the latest Intense 3D Pro information and driver software. -
Page 18: Warranty Service
Warranty Service Contact the original place of purchase to get warranty service for your Intense 3D Pro 1000 board. If your warranty period has expired, you may still be eligible for warranty service from Intergraph. Refer to the warranty statement at the beginning of this document for details. - Page 19 3. Make a copy of the original sales receipt or other document that supports your proof of purchase. 4. Put the failing board in its original packaging along with your proof of purchase, and return it to Intergraph by the carrier of your choice.
-
Page 21: Technical Information
+5V 1.5 A +3.3V 4.0 A Monitor Resolutions In the following tables, i indicates an interlaced frequency. Intense 3D Pro 1000 supports standard multi-sync monitors, including Intergraph 17-inch and 21-inch multi-sync monitors, at the following resolutions and maximum refresh rates (Hz). Aspect... -
Page 22: Vga Support
76 (20), 72i (20), 74 (27), 70i (27) VGA Support The Intense 3D Pro 1000 Graphics Accelerator provides onboard VGA video display support. The maximum resolution supported is 800 x 600, 4 bits per pixel, at 60 Hz vertical refresh. - Page 23 Interfaces The Intense 3D Pro 1000 Graphics Accelerator has three interfaces: a video output port, a VGA input port, and a stereo sync output port. Video Output The video output port is a blue, female, 15-pin, D-Sub connector.
- Page 24 VGA Input The VGA input port is a black, female, 15-pin, D-Sub connector. The port allows connection of a VGA device for the sysetm to use in VGA graphics mode. Signal Name Signal Name Red Analog Video No Connect Green Analog Video Ground Blue Analog Video Monitor ID (bit 0)
- Page 25 Signal Name Ground Ground +12V Stereo Sync No Connect...
