Hardware; Driver Software; Connecting Monitors - Intergraph Intense3D Wildcat 4105 Hardware User's Manual

2
Support for industry-standard monitors
Hardware support for stereoscopic viewing, Display Data Channel (DDC), and Display Power
Management Signaling (DPMS)
Visit http://www.intense3d.com for the latest performance data and other information.

Hardware

The Wildcat 4105 is a single-card solution that uses one Advanced Graphics Port (AGP) slot and
supports a single-screen configuration. It also requires an open adjacent PCI slot for cooling
purposes.

Driver Software

The Wildcat 4105 uses the Intense3D Wildcat video display driver. The video display driver
installs as a standard Windows NT driver, and provides both GDI and OpenGL graphics
compatibility. You can download the latest drivers from http://www.intense3d.com or from the
delivery media included with the card.

Connecting Monitors

In a workstation purchased with the Wildcat 4105, the appropriate card is already installed in the
workstation base unit.
To connect monitors to the Wildcat 4105:
1. Connect the workstation monitor's video cable to the color video output port on the Wildcat
4105 card. See the following figure.

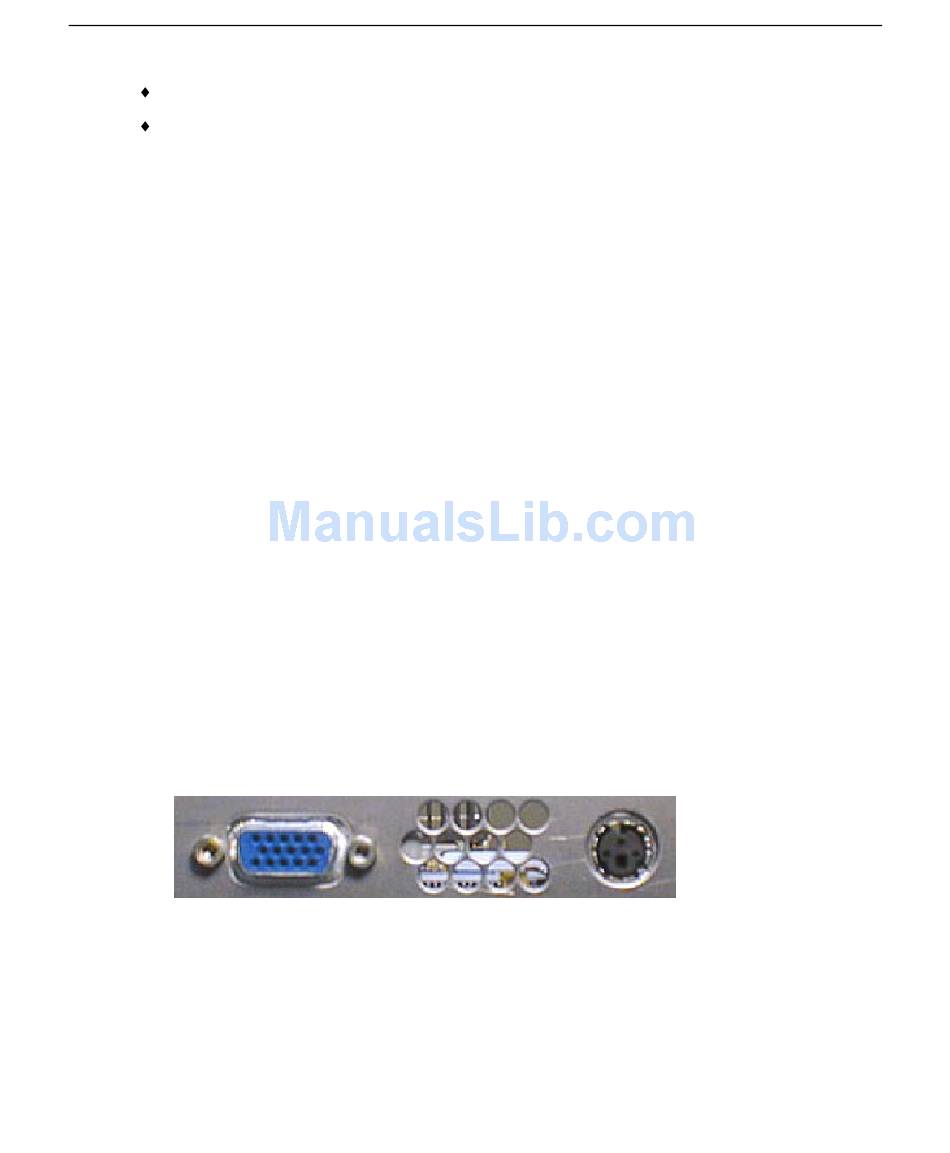

Output Port
NOTE If a workstation monitor has no built-in video cable, use a shielded video cable with a
15-pin (D-sub) video connector at one end for the video output port on the card, and
the appropriate connectors at the other end for the video input port on the
workstation monitor.
Video Stereo Sync
Output Port
