In the Intense3D Monitor tab, click Configure Monitor to change the display mode, select a

monitor type, and change the resolution/refresh rate (see Figure 9). Once you have made the

changes you require, click OK to accept the new configuration and dismiss the Configure

Monitor dialog. You are returned to the Intense3D Monitor tab.

NOTE

See "Enabling Stereo Display," for instructions on changing the Display Mode. See

Appendix A, "Specifications," for a list of available monitor resolutions.

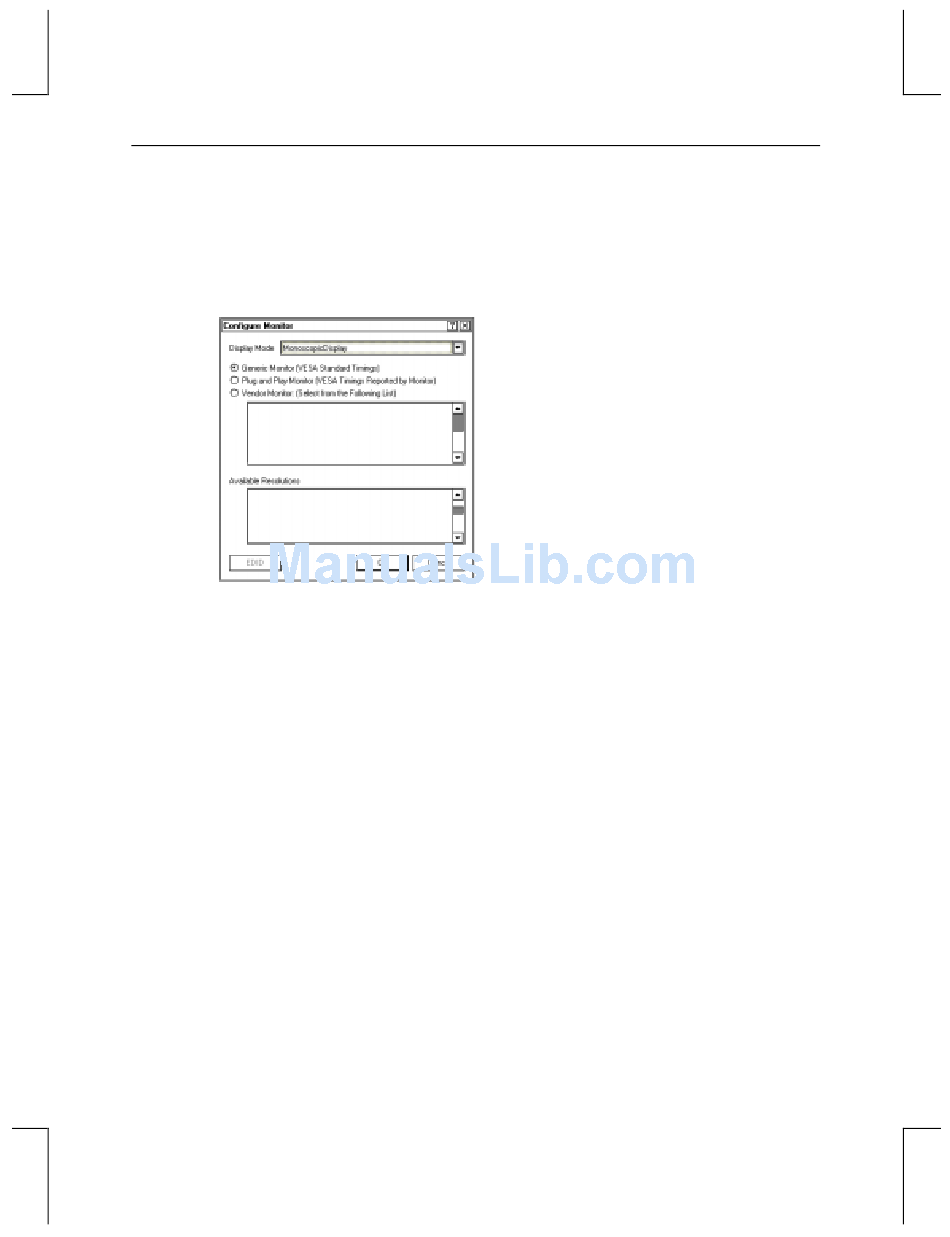

Figure 9. Configure Monitor Dialog

Click OK on the Display Properties dialog to accept the changes, or click Cancel to close the

dialog without accepting any modifications.

Restart the computer if you are prompted to do so. Most changes will take effect without

restarting.

Enabling Stereo Display

If you connect a device to the stereo port on the Wildcat 4210, you must change the display mode

to view in stereo.

To enable stereo display:

Make sure your stereo display device is properly connected to the stereo output port on the

Wildcat 4210. See Chapter 2, "Setup," for more information.

From the operating system Start menu, go to Settings » Control Panel » Display. In Windows

NT 4.0, click the Intense3D Monitor tab if it is not already displayed. In Windows 2000,

continue to Settings » Advanced and click the Intense3D Monitor tab.

On the Intense3D Monitor tab, click Configure Monitor.

Select a Stereoscopic Display mode from the Display Mode list box and then click OK.
