You may see the following message: "The selected monitor cannot display the current desktop

area. Select a new resolution before applying these changes." If you do, click OK and then

select a resolution from the list of available resolutions.

Click OK if the display is correct and you wish to keep the new settings.

Click OK to accept the new display mode.

NOTE

You must disable stereo mode when you no longer wish to view in stereo. Follow the

previous steps, and select Monoscopic Display from the Display Mode list box.

Enabling Multiview and Genlock

The Wildcat 4210 features Multiview support for frame locking and rate locking of multiple

computers. Genlock support allows video timing to be synchronized to an external timing source.

NOTE

Your application must support Multiview for Multiview to work.

NOTE

Refer to the Support pages on the Intense3D Web site for information on ordering

the correct Multiview and Genlock cables.

To prepare computers to use Multiview:

Insert one end of a shielded RJ12 cable into the Multiview Out port (see Figure 10) of the first

computer. This computer becomes the "master"

Insert the other end of the cable into the Multiview In port (see Figure 10) of the second

computer. This computer becomes a "slave."

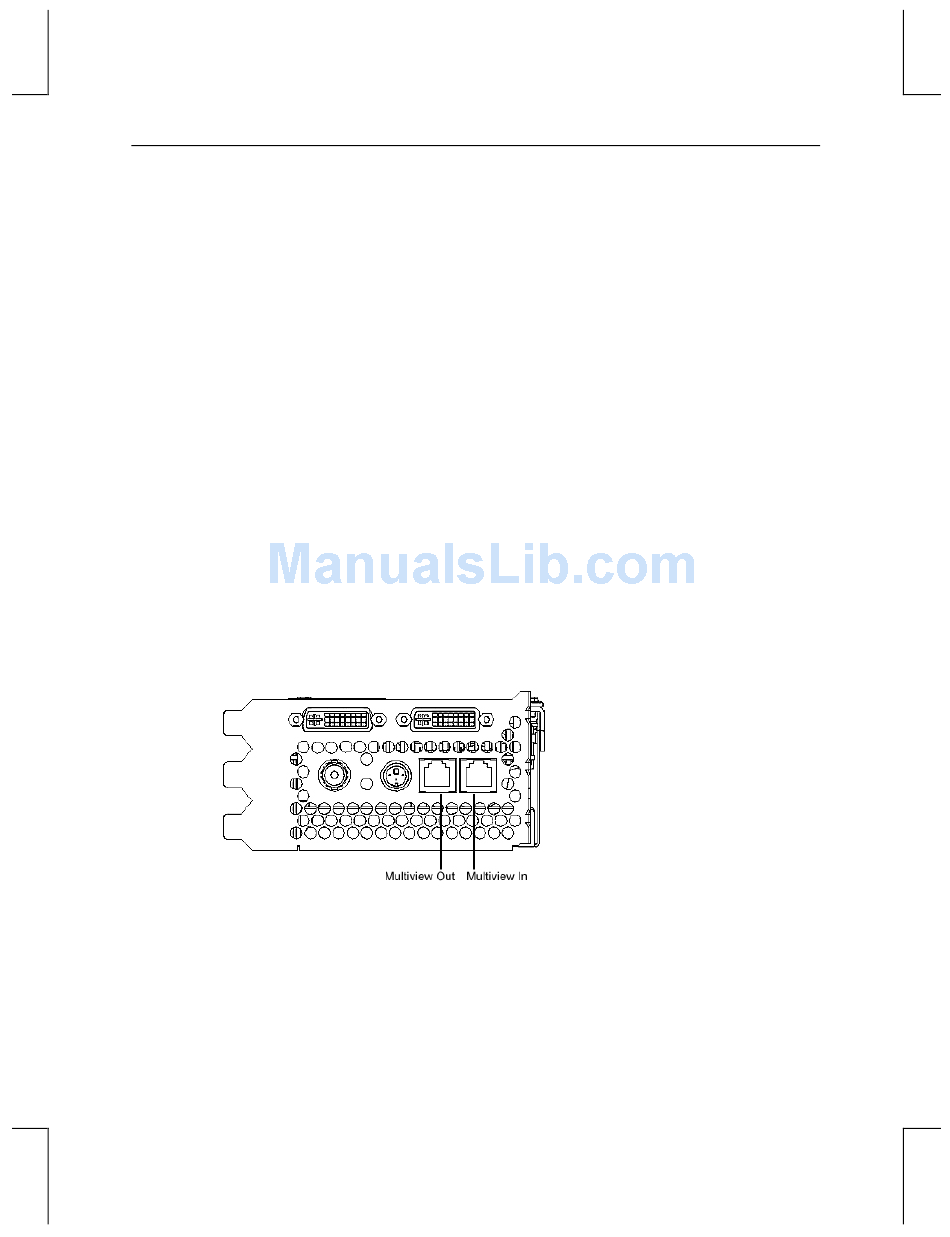

Figure 10. Multiview Ports

If connecting more than two computers, continue linking computers to one another by

connecting the Multiview Out port of one computer to the Multiview In port of the next. The

last computer should terminate the links and only have a cable plugged into the Multiview In

port.
