Connecting a Stereo Display Device
See the documentation delivered with the stereoscopic display device for detailed information on
connections and cabling.
To connect a stereo display device:
1.
Connect one end of the stereo emitter cable to the input port on the stereoscopic display
device.
2.
Connect the other end of the stereo emitter cable to the Stereo Sync Out port on the Wildcat
4210 video card (see Figure 5).
3.
Configure the display settings to enable stereo display. See Chapter 3, "Using the Video
Card," for more information.

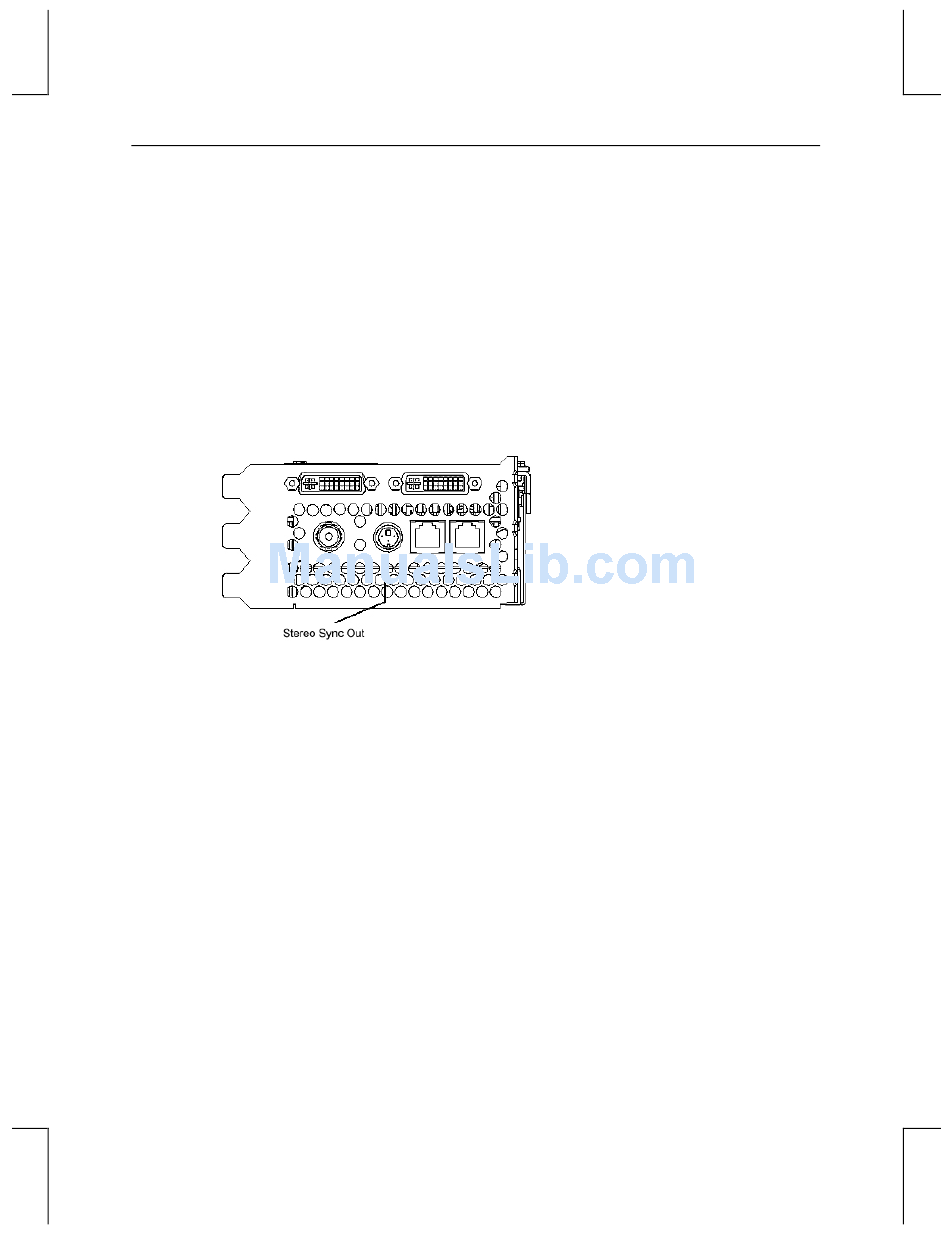

Figure 5. Stereo Sync Out Port
13
