4
BASIC OPERATION

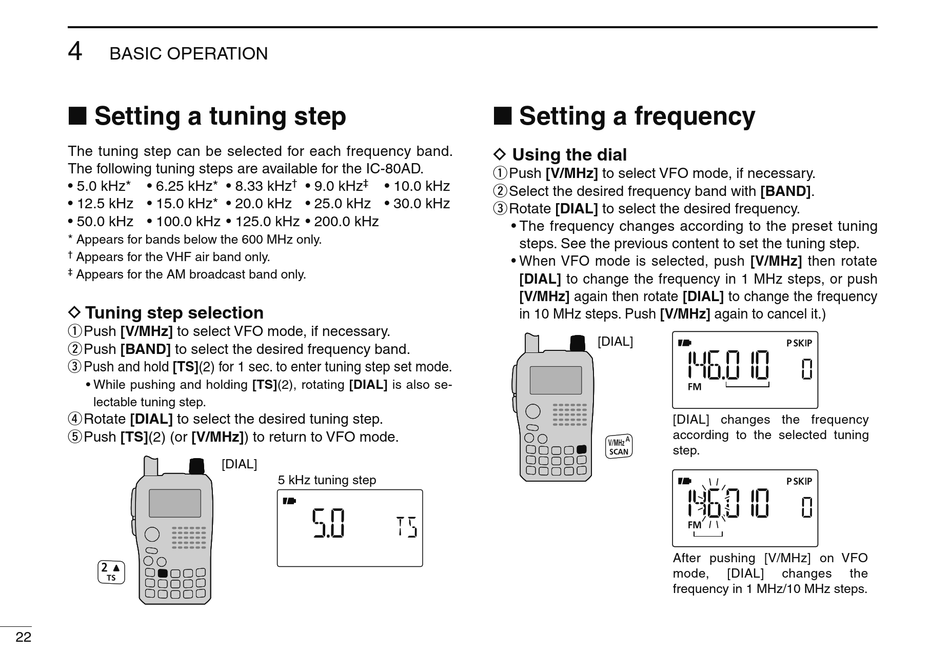

Setting a tuning step

The tuning step can be selected for each frequency band.
The following tuning steps are available for the IC-80AD.
• 5.0 kHz* • 6.25 kHz* • 8.33 kHz
• 12.5 kHz • 15.0 kHz* • 20.0 kHz • 25.0 kHz • 30.0 kHz
• 50.0 kHz • 100.0 kHz • 125.0 kHz • 200.0 kHz
* Appears for bands below the 600 MHz only.
†
Appears for the VHF air band only.
‡
Appears for the AM broadcast band only.
D Tuning step selection
q Push [V/MHz] to select VFO mode, if necessary.
w Push [BAND] to select the desired frequency band.
e Push and hold [TS](2) for 1 sec. to enter tuning step set mode.
• While pushing and holding [TS](2), rotating [DIAL] is also se-
lectable tuning step.
r Rotate [DIAL] to select the desired tuning step.
t Push [TS](2) (or [V/MHz]) to return to VFO mode.
22
† ‡
• 9.0 kHz • 10.0 kHz
[DIAL]
5 kHz tuning step

Setting a frequency

D Using the dial
q Push [V/MHz] to select VFO mode, if necessary.
w Select the desired frequency band with [BAND].
e Rotate [DIAL] to select the desired frequency.
• The frequency changes according to the preset tuning
steps. See the previous content to set the tuning step.
• When VFO mode is selected, push [V/MHz] then rotate
[DIAL] to change the frequency in 1 MHz steps, or push
[V/MHz] again then rotate [DIAL] to change the frequency
in 10 MHz steps. Push [V/MHz] again to cancel it.)
[DIAL]
[DIAL] changes the frequency
according to the selected tuning
step.
After pushing [V/MHz] on VFO
mode,
frequency in 1 MHz/10 MHz steps.
[DIAL] changes the
