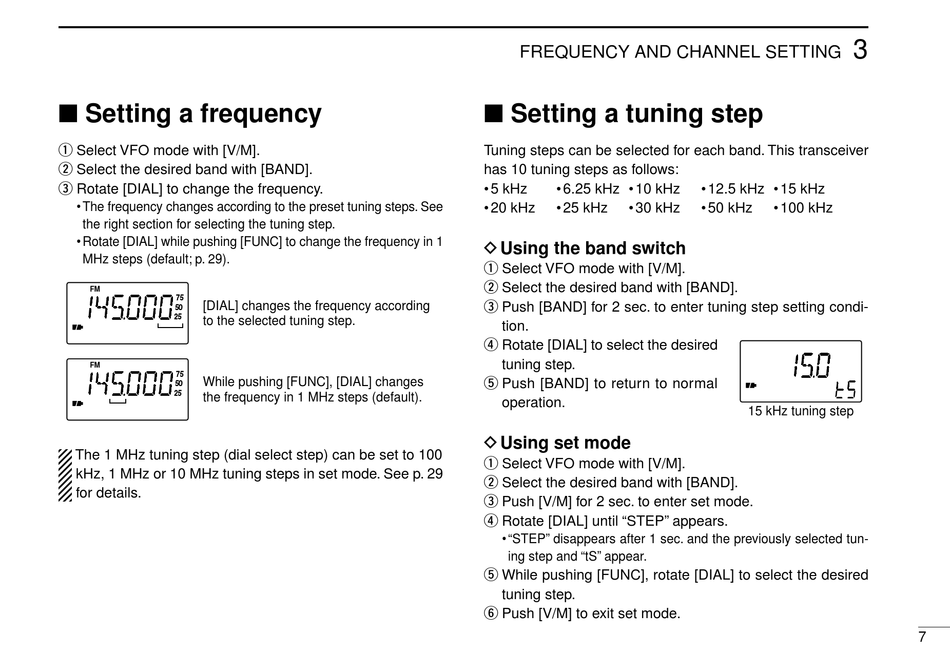

Setting a frequency

q Select VFO mode with [V/M].
w Select the desired band with [BAND].
e Rotate [DIAL] to change the frequency.
• The frequency changes according to the preset tuning steps. See
the right section for selecting the tuning step.
• Rotate [DIAL] while pushing [FUNC] to change the frequency in 1
MHz steps (default; p. 29).
FM
[DIAL] changes the frequency according
to the selected tuning step.
FM
While pushing [FUNC], [DIAL] changes
the frequency in 1 MHz steps (default).
The 1 MHz tuning step (dial select step) can be set to 100
kHz, 1 MHz or 10 MHz tuning steps in set mode. See p. 29
for details.
FREQUENCY AND CHANNEL SETTING

Setting a tuning step

Tuning steps can be selected for each band. This transceiver
has 10 tuning steps as follows:
• 5 kHz • 6.25 kHz • 10 kHz
• 20 kHz • 25 kHz • 30 kHz
D Using the band switch
q Select VFO mode with [V/M].
w Select the desired band with [BAND].
e Push [BAND] for 2 sec. to enter tuning step setting condi-
tion.
r Rotate [DIAL] to select the desired
tuning step.
t Push [BAND] to return to normal
operation.
D Using set mode
q Select VFO mode with [V/M].
w Select the desired band with [BAND].
e Push [V/M] for 2 sec. to enter set mode.
r Rotate [DIAL] until "STEP" appears.
• "STEP" disappears after 1 sec. and the previously selected tun-
ing step and "tS" appear.
t While pushing [FUNC], rotate [DIAL] to select the desired
tuning step.
y Push [V/M] to exit set mode.
3
• 12.5 kHz • 15 kHz
• 50 kHz • 100 kHz
15 kHz tuning step
7
