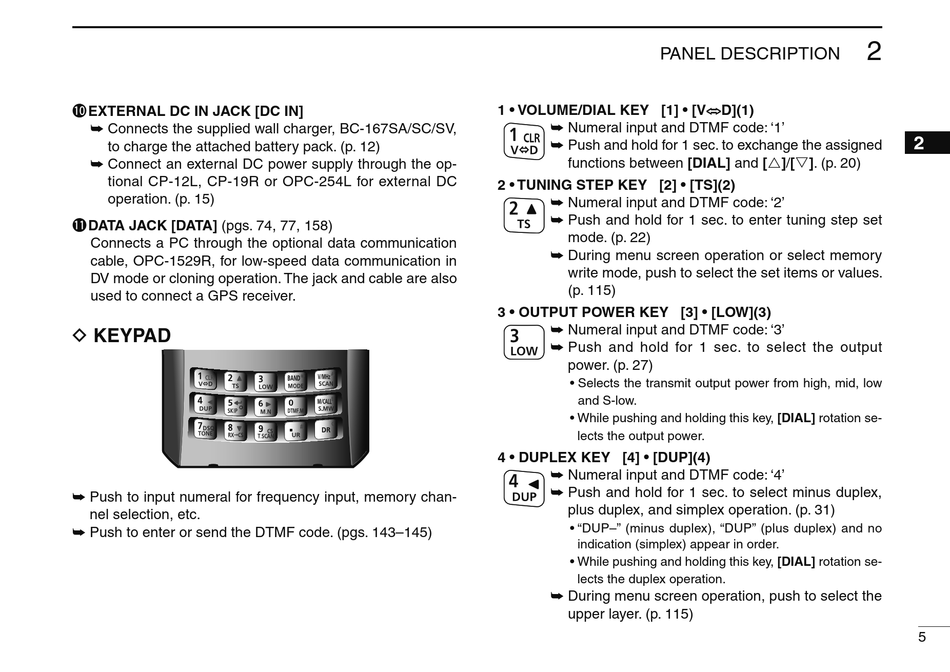

Icom IC-80AD Instruction Manual page 13

!0 EXTERNAL DC IN JACK [DC IN]
Connects the supplied wall charger, BC-167SA/SC/SV,
to charge the attached battery pack. (p. 12)
Connect an external DC power supply through the op-
tional CP-12L, CP-19R or OPC-254L for external DC
operation. (p. 15)
!1 DATA JACK [DATA] (pgs. 74, 77, 158)
Connects a PC through the optional data communication
cable, OPC-1529R, for low-speed data communication in
DV mode or cloning operation. The jack and cable are also
used to connect a GPS receiver.
D KEYPAD
Push to input numeral for frequency input, memory chan-
nel selection, etc.
Push to enter or send the DTMF code. (pgs. 143–145)
PANEL DESCRIPTION
1 • VOLUME/DIAL KEY [1] • [V<=>D](1)
Numeral input and DTMF code: '1'
Push and hold for 1 sec. to exchange the assigned
functions between [DIAL] and [ ]/[ ]. (p. 20)
2 • TUNING STEP KEY [2] • [TS](2)
Numeral input and DTMF code: '2'
Push and hold for 1 sec. to enter tuning step set
mode. (p. 22)
During menu screen operation or select memory
write mode, push to select the set items or values.
(p. 115)
3 • OUTPUT POWER KEY [3] • [LOW](3)
Numeral input and DTMF code: '3'
Push and hold for 1 sec. to select the output
power. (p. 27)
• Selects the transmit output power from high, mid, low
and S-low.
• While pushing and holding this key, [DIAL] rotation se-
lects the output power.
4 • DUPLEX KEY [4] • [DUP](4)
Numeral input and DTMF code: '4'
Push and hold for 1 sec. to select minus duplex,
plus duplex, and simplex operation. (p. 31)
• "DUP–" (minus duplex), "DUP" (plus duplex) and no
indication (simplex) appear in order.
• While pushing and holding this key, [DIAL] rotation se-
lects the duplex operation.
During menu screen operation, push to select the
upper layer. (p. 115)
