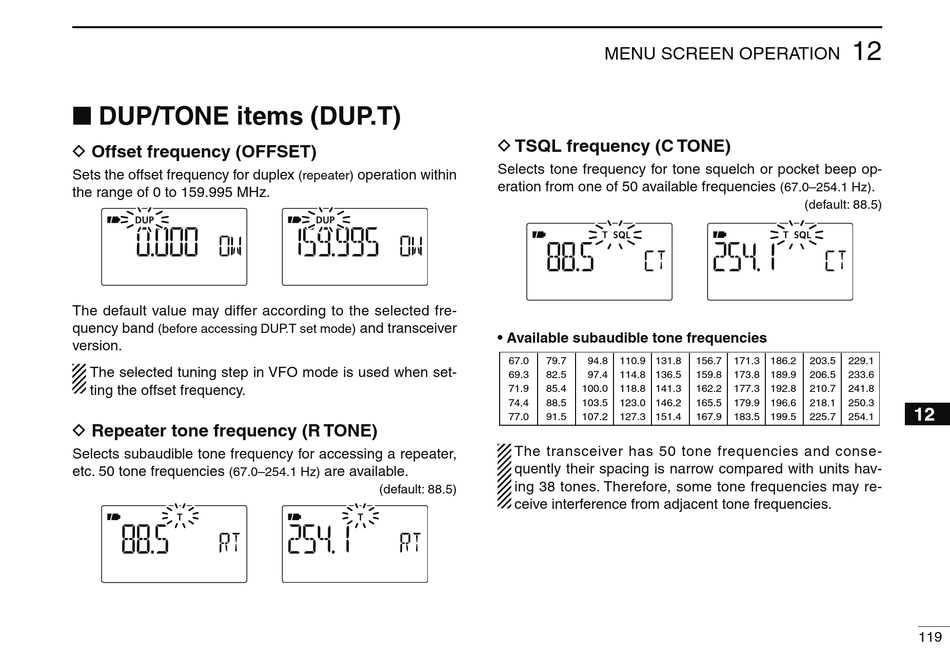

DUP/TONE items (DUP.T)
D Offset frequency (OFFSET)
Sets the offset frequency for duplex
the range of 0 to 159.995 MHz.
The default value may differ according to the selected fre-
quency band
(before accessing DUP.T set mode)
version.
The selected tuning step in VFO mode is used when set-
ting the offset frequency.
D Repeater tone frequency (R TONE)
Selects subaudible tone frequency for accessing a repeater,
etc. 50 tone frequencies
(67.0–254.1 Hz)
operation within
(repeater)
and transceiver
are available.
(default: 88.5)
MENU SCREEN OPERATION
D TSQL frequency (C TONE)
Selects tone frequency for tone squelch or pocket beep op-
eration from one of 50 available frequencies
• Available subaudible tone frequencies
67.0 79.7 94.8 110.9 131.8
69.3 82.5 97.4 114.8 136.5
71.9 85.4 100.0 118.8 141.3
74.4 88.5 103.5 123.0 146.2
77.0 91.5 107.2 127.3 151.4
The transceiver has 50 tone frequencies and conse-
quently their spacing is narrow compared with units hav-
ing 38 tones. Therefore, some tone frequencies may re-
ceive interference from adjacent tone frequencies.
12
.
(67.0–254.1 Hz)
(default: 88.5)
156.7 171.3 186.2 203.5 229.1
159.8 173.8 189.9 206.5 233.6
162.2 177.3 192.8 210.7 241.8
165.5 179.9 196.6 218.1 250.3
167.9 183.5 199.5 225.7 254.1
