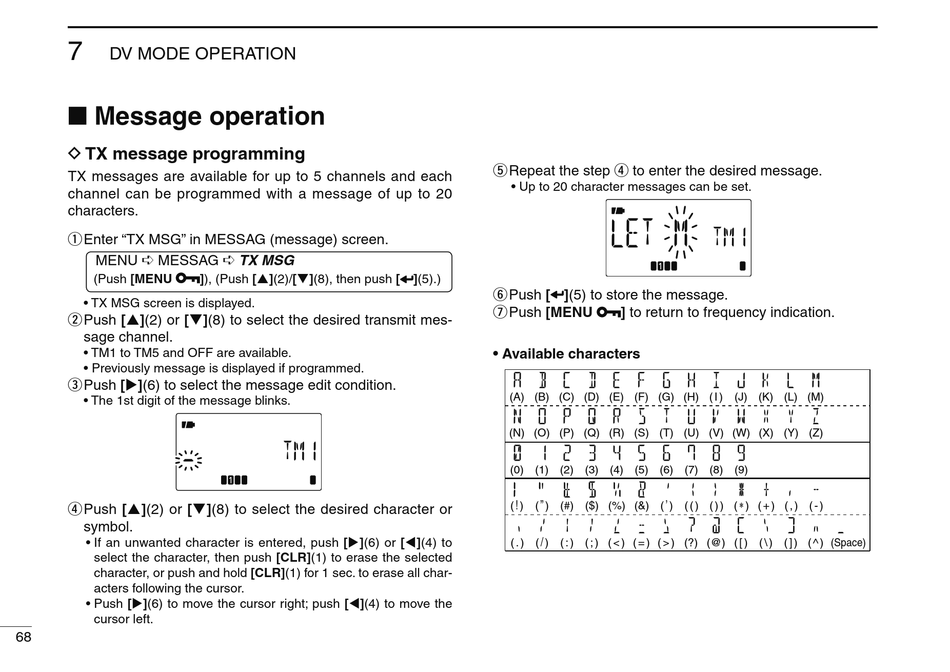

Message Operation; D Tx Message Programming - Icom IC-80AD Instruction Manual

7
DV MODE OPERATION

Message operation

D TX message programming

TX messages are available for up to 5 channels and each
channel can be programmed with a message of up to 20
characters.
q Enter "TX MSG" in MESSAG (message) screen.
MENU MESSAG
(Push [MENU
• TX MSG screen is displayed.
w Push [ ](2) or [ ](8) to select the desired transmit mes-
sage channel.
• TM1 to TM5 and OFF are available.
• Previously message is displayed if programmed.
e Push [ ](6) to select the message edit condition.
• The 1st digit of the message blinks.
r Push [ ](2) or [ ](8) to select the desired character or
symbol.
• If an unwanted character is entered, push [ ](6) or [ ](4) to
select the character, then push [CLR](1) to erase the selected
character, or push and hold [CLR](1) for 1 sec. to erase all char-
acters following the cursor.
• Push [ ](6) to move the cursor right; push [ ](4) to move the
cursor left.
68
TX MSG
]), (Push [ ](2)/[ ](8), then push [ ](5).)
t Repeat the step r to enter the desired message.
• Up to 20 character messages can be set.
y Push [ ](5) to store the message.
u Push [MENU
] to return to frequency indication.
• Available characters
(A) (B) (C) (D) (E) (F) (G) (H) ( I ) (J)
(N) (O) (P) (Q) (R) (S) (T) (U) (V) (W)
(0) (1) (2) (3) (4) (5) (6) (7) (8)
! " '
( ) ( ) (#) ($) (%) (&) ( )
/
( . ) ( ) ( : ) ( ; ) ( < ) ( = ) ( > )
(K) (L) (M)
(X) (Y) (Z)
(9)
( ( ) ( ) ) ( ) ( + ) ( , ) ( - )
(?) (@) ( [ ) ( \ ) ( ] ) ( ^ ) (Space)
