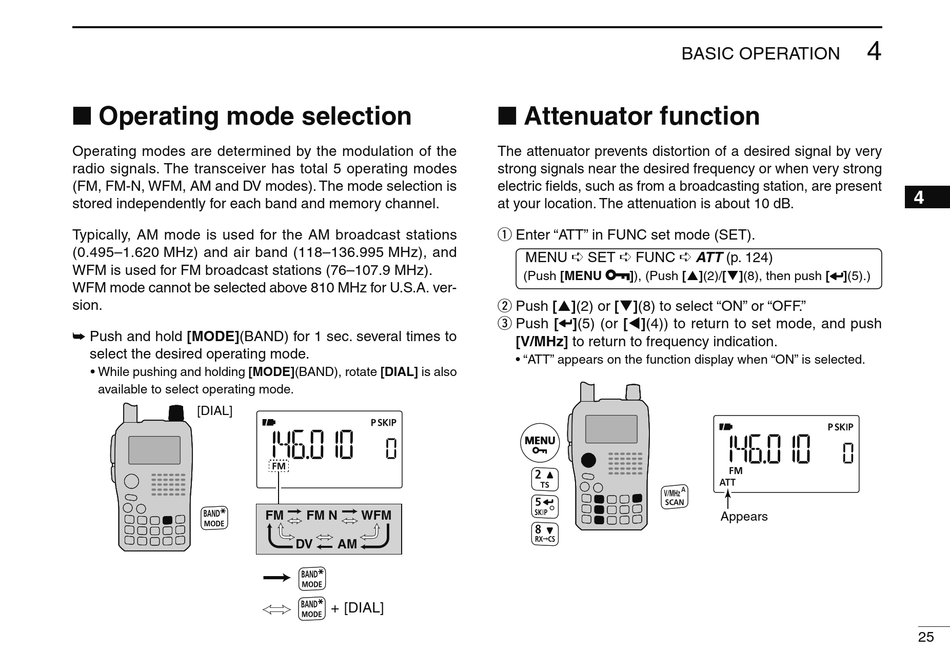

Operating mode selection

Operating modes are determined by the modulation of the
radio signals. The transceiver has total 5 operating modes
(FM, FM-N, WFM, AM and DV modes). The mode selection is
stored independently for each band and memory channel.
Typically, AM mode is used for the AM broadcast stations
(0.495–1.620 MHz) and air band (118–136.995 MHz), and
WFM is used for FM broadcast stations (76–107.9 MHz).
WFM mode cannot be selected above 810 MHz for U.S.A. ver-
sion.
Push and hold [MODE](BAND) for 1 sec. several times to
select the desired operating mode.
• While pushing and holding [MODE](BAND), rotate [DIAL] is also
available to select operating mode.
[DIAL]
FM FM N WFM
DV AM
+ [DIAL]

Attenuator function

The attenuator prevents distortion of a desired signal by very
strong signals near the desired frequency or when very strong
electric fields, such as from a broadcasting station, are present
at your location. The attenuation is about 10 dB.
q Enter "ATT" in FUNC set mode (SET).
MENU SET FUNC
(Push [MENU ]), (Push [ ](2)/[ ](8), then push [ ](5).)
w Push [ ](2) or [ ](8) to select "ON" or "OFF."
e Push [ ](5) (or [ ](4)) to return to set mode, and push
[V/MHz] to return to frequency indication.
• "ATT" appears on the function display when "ON" is selected.
BASIC OPERATION
ATT (p. 124)
Appears
