EUROCOM Notebook V09.1.00 User Manual page 108

Upgrading The Computer

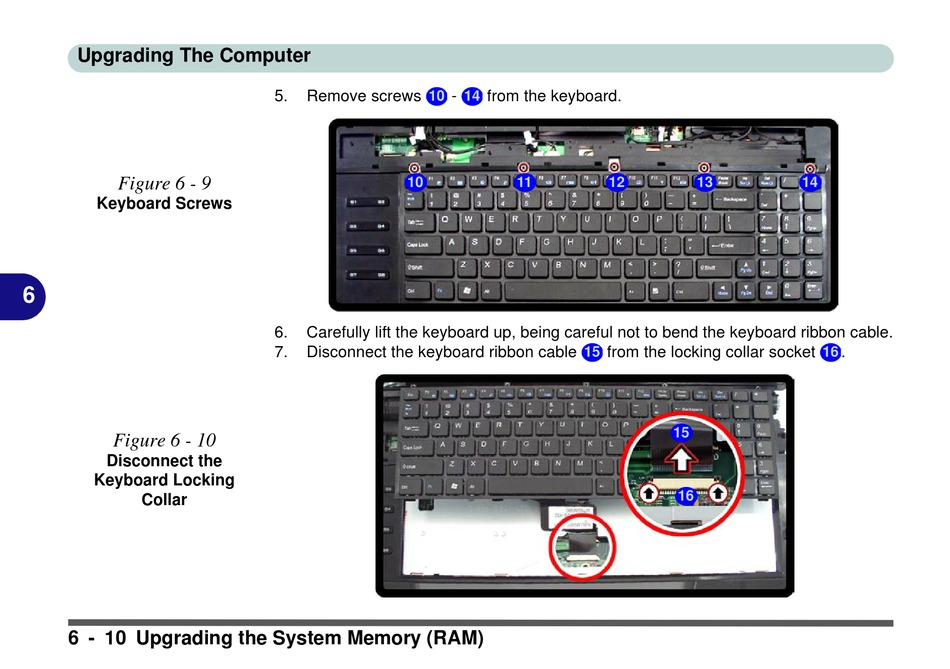

Figure 6 - 9
Keyboard Screws
6
Figure 6 - 10
Disconnect the
Keyboard Locking
Collar
6 - 10 Upgrading the System Memory (RAM)
5. Remove screws -
10
10
6. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable.
7. Disconnect the keyboard ribbon cable
from the keyboard.
14
11 12 10
from the locking collar socket
15
13 14
.
16
15
16
