EUROCOM Notebook User Manual page 124

Upgrading The Computer

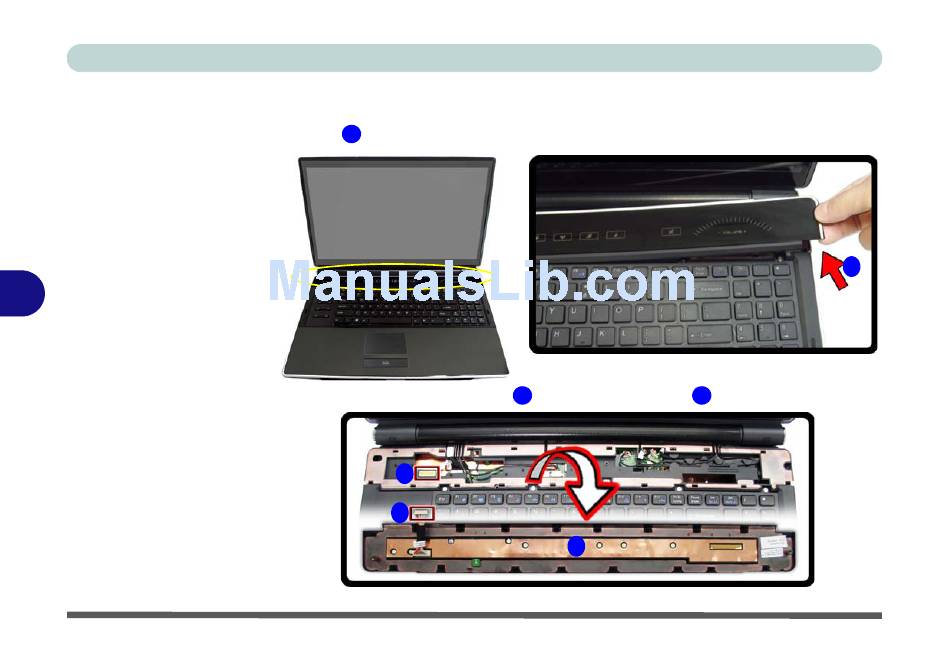

Figure 6 - 13
LED Cover Module
Removal
6
Figure 6 - 14
LED Cover Module
Cable Disconnect
6 - 14 Upgrading the System Memory (RAM) - 2
3. Turn the computer over, open the Lid/LCD, and carefully (a cable is connected to
the underside of the LED cover module) unsnap up the LED cover module from
point on the right.
3
4. Lift up the LED cover module
5
5
and disconnect cable
4
4
3
.
5
