System Map: Right & Rear Views
1 2 3 4
6
If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption)
you may push the end of a straightened paper clip into the emergency eject hole. Do not
use a sharpened pencil or any object that may break and become lodged in the hole.
Don't try to remove a floppy disk/CD/DVD while the system is accessing it. This may
cause the system to "crash".
Don't try to eject a CD/DVD while the system is accessing it. This may cause the system
to "crash". Stop the disk first then eject it, or press the stop button twice.
5
7

CD/DVD Emergency Eject
Disk Eject Warning
1.
2.
3.
4.
5.
6.
7.
System Map: Right & Rear Views 1 - 17
Quick Start Guide

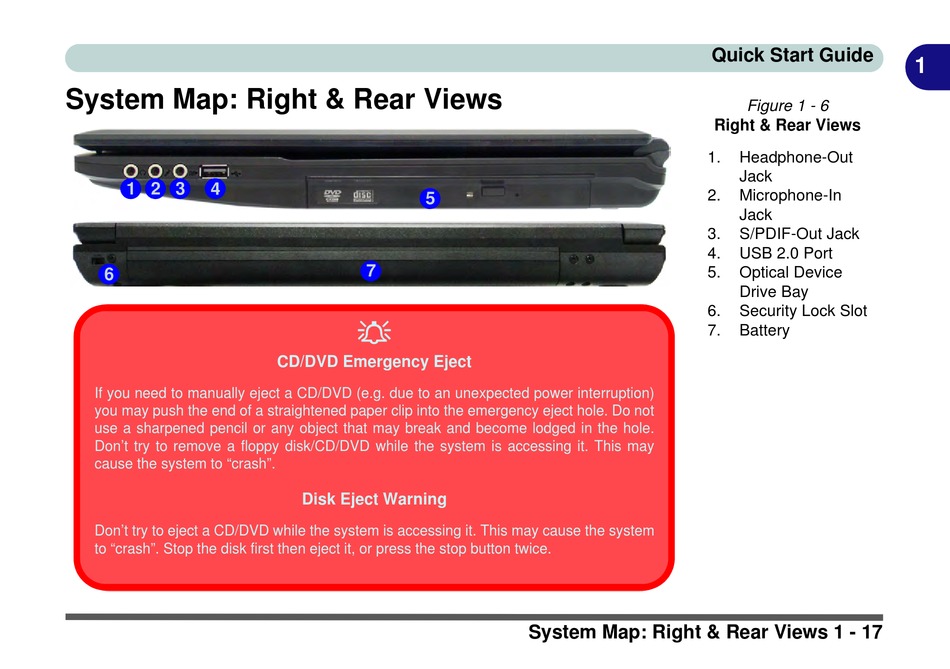

Figure 1 - 6
Right & Rear Views
Headphone-Out
Jack
Microphone-In
Jack
S/PDIF-Out Jack
USB 2.0 Port
Optical Device
Drive Bay
Security Lock Slot
Battery
