System Map: Bottom View - Model B


Battery Information
Always completely dis-
charge, then fully
charge, a new battery
before using it. Com-
pletely discharge and
charge the battery at
least once every 30 days
or after about 20 partial
discharges. See "Bat-
tery Information" on
page 3 - 12 for full in-
structions.
The CPU is not a user serviceable part.
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
1
4

CPU
Overheating
System Map: Bottom View - Model B 1 - 19
Quick Start Guide
Bottom View
3
1. Battery
2. Component Bay
Cover
3. Fan Intake
2
4. Speakers
3
4
1

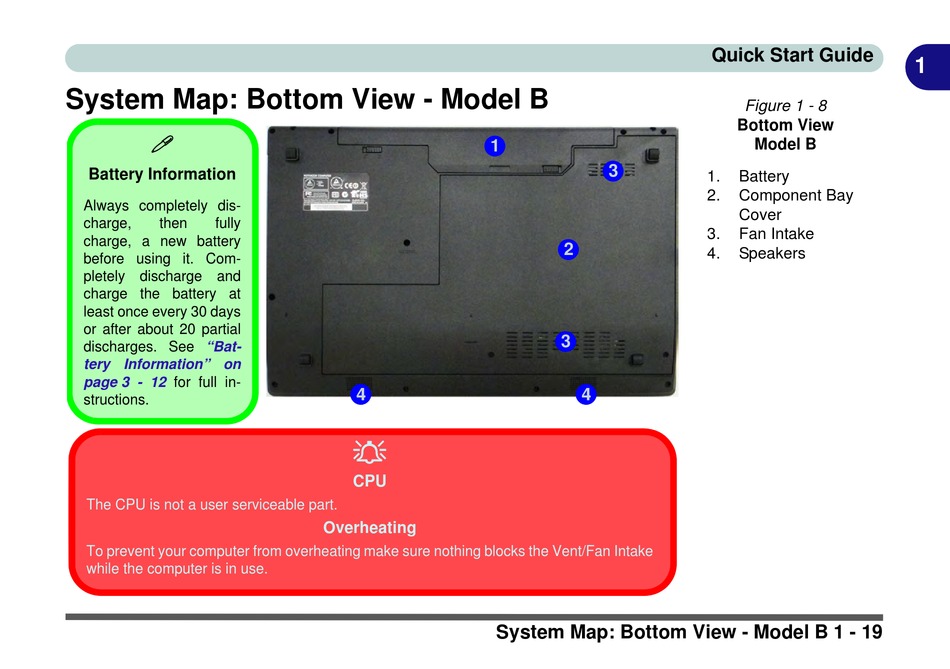

Figure 1 - 8
Model B
