Concise User's Guide

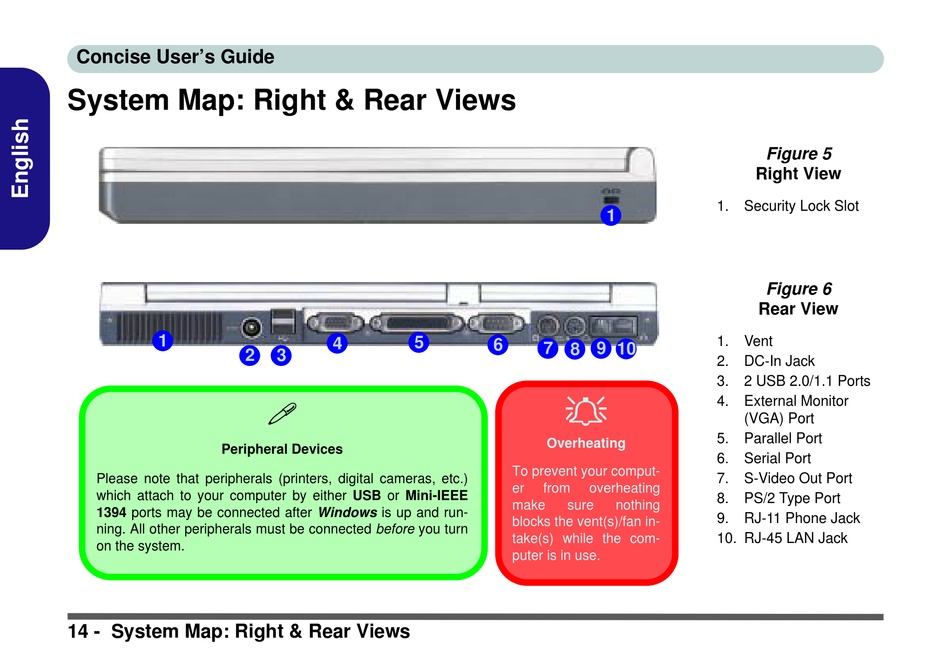

System Map: Right & Rear Views
1
2
Peripheral Devices
Please note that peripherals (printers, digital cameras, etc.)
which attach to your computer by either USB or Mini-IEEE
1394 ports may be connected after Windows is up and run-
ning. All other peripherals must be connected before you turn
on the system.
14 - System Map: Right & Rear Views
5
4
3
!
1
6
7 8 9
10
!
Overheating
To prevent your comput-
er from overheating
make sure nothing
blocks the vent(s)/fan in-
take(s) while the com-
puter is in use.
Figure 5
Right View
1. Security Lock Slot
Figure 6
Rear View
1. Vent
2. DC-In Jack
3. 2 USB 2.0/1.1 Ports
4. External Monitor
(VGA) Port
5. Parallel Port
6. Serial Port
7. S-Video Out Port
8. PS/2 Type Port
9. RJ-11 Phone Jack
10. RJ-45 LAN Jack
