Quick Start Guide
1

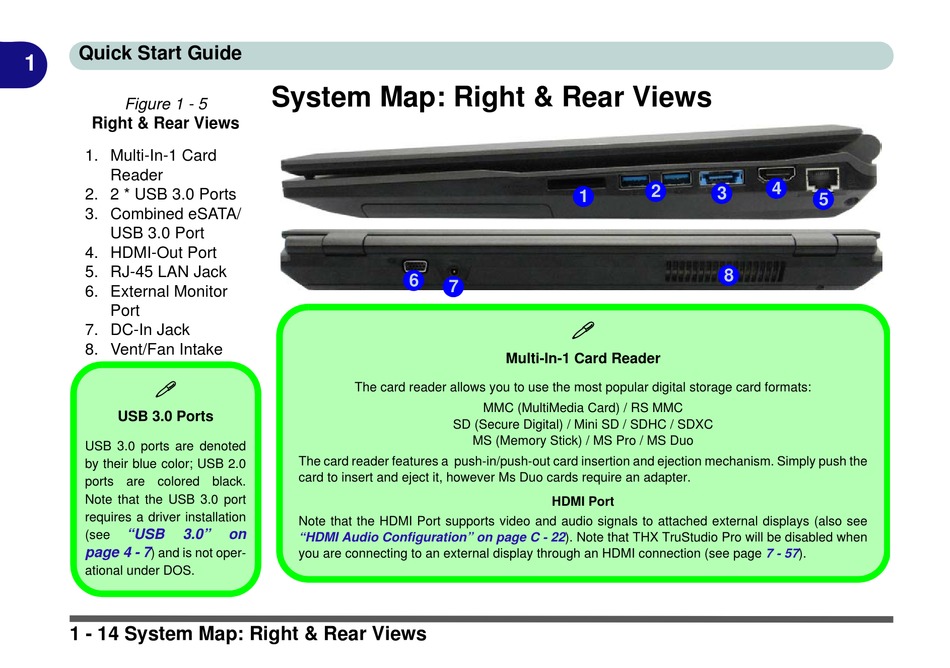

Figure 1 - 5
Right & Rear Views
1. Multi-In-1 Card
Reader
2. 2 * USB 3.0 Ports
3. Combined eSATA/
USB 3.0 Port
4. HDMI-Out Port
5. RJ-45 LAN Jack
6. External Monitor
Port
7. DC-In Jack
8. Vent/Fan Intake

USB 3.0 Ports
USB 3.0 ports are denoted
by their blue color; USB 2.0
ports are colored black.
Note that the USB 3.0 port
requires a driver installation
"USB 3.0"
(see
page 4 - 7
) and is not oper-
ational under DOS.
1 - 14 System Map: Right & Rear Views
System Map: Right & Rear Views
6
The card reader allows you to use the most popular digital storage card formats:
The card reader features a push-in/push-out card insertion and ejection mechanism. Simply push the
card to insert and eject it, however Ms Duo cards require an adapter.
Note that the HDMI Port supports video and audio signals to attached external displays (also see
on
"HDMI Audio Configuration" on page C -
you are connecting to an external display through an HDMI connection (see page
1
7

Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
SD (Secure Digital) / Mini SD / SDHC / SDXC
MS (Memory Stick) / MS Pro / MS Duo
HDMI Port
22). Note that THX TruStudio Pro will be disabled when
4
2
3
5
8
7 - 57).
