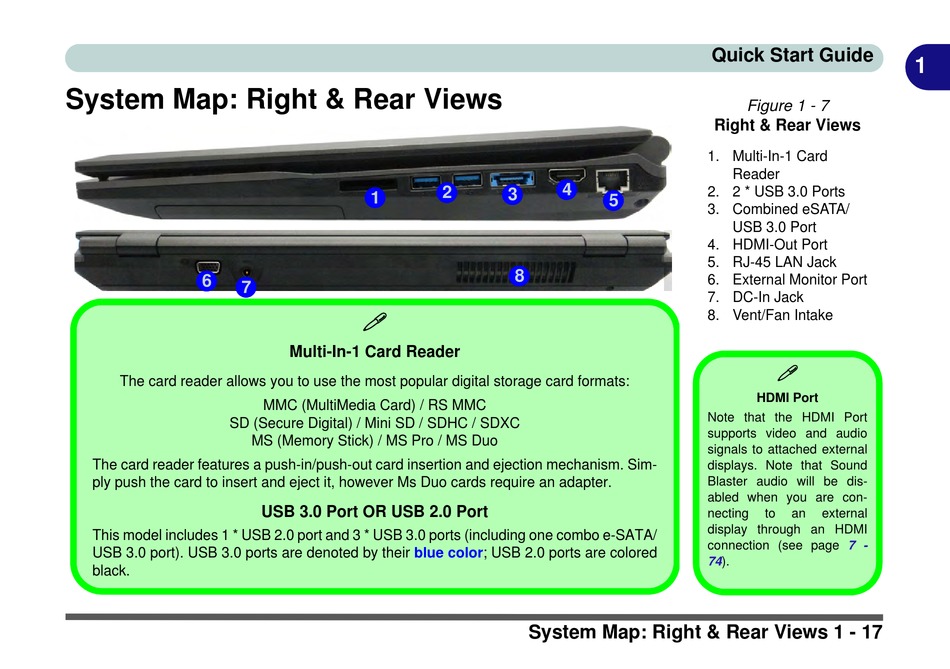

System Map: Right & Rear Views
6
7
The card reader allows you to use the most popular digital storage card formats:
SD (Secure Digital) / Mini SD / SDHC / SDXC
The card reader features a push-in/push-out card insertion and ejection mechanism. Sim-
ply push the card to insert and eject it, however Ms Duo cards require an adapter.
This model includes 1 * USB 2.0 port and 3 * USB 3.0 ports (including one combo e-SATA/
USB 3.0 port). USB 3.0 ports are denoted by their
black.
1

Multi-In-1 Card Reader
MMC (MultiMedia Card) / RS MMC
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port OR USB 2.0 Port
blue
4
2
3
5
8
color; USB 2.0 ports are colored
System Map: Right & Rear Views 1 - 17
Quick Start Guide
Figure 1 - 7
Right & Rear Views
1. Multi-In-1 Card
Reader
2. 2 * USB 3.0 Ports
3. Combined eSATA/
USB 3.0 Port
4. HDMI-Out Port
5. RJ-45 LAN Jack
6. External Monitor Port
7. DC-In Jack
8. Vent/Fan Intake

HDMI Port
Note that the HDMI Port
supports video and audio
signals to attached external
displays. Note that Sound
Blaster audio will be dis-
abled when you are con-
necting to an external
display through an HDMI
connection (see page 7 -
74).
