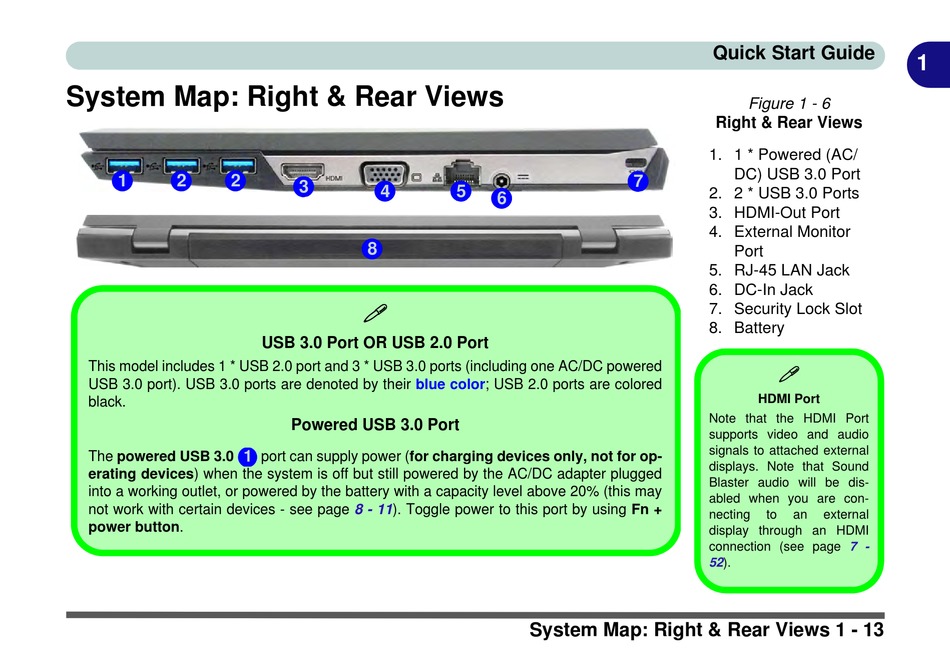

System Map: Right & Rear Views
1 2 2
This model includes 1 * USB 2.0 port and 3 * USB 3.0 ports (including one AC/DC powered
USB 3.0 port). USB 3.0 ports are denoted by their
black.
The powered USB 3.0 1
erating devices) when the system is off but still powered by the AC/DC adapter plugged
into a working outlet, or powered by the battery with a capacity level above 20% (this may
not work with certain devices - see page
power button.
3
4
8

USB 3.0 Port OR USB 2.0 Port
blue
Powered USB 3.0 Port
port can supply power (for charging devices only, not for op-
8 - 11). Toggle power to this port by using Fn +
5
6
color; USB 2.0 ports are colored
System Map: Right & Rear Views 1 - 13
Quick Start Guide
Figure 1 - 6
Right & Rear Views
1. 1 * Powered (AC/
DC) USB 3.0 Port
7
2. 2 * USB 3.0 Ports
3. HDMI-Out Port
4. External Monitor
Port
5. RJ-45 LAN Jack
6. DC-In Jack
7. Security Lock Slot
8. Battery

HDMI Port
Note that the HDMI Port
supports video and audio
signals to attached external
displays. Note that Sound
Blaster audio will be dis-
abled when you are con-
necting to an
display through an HDMI
connection (see page
52).
1
external
7 -
