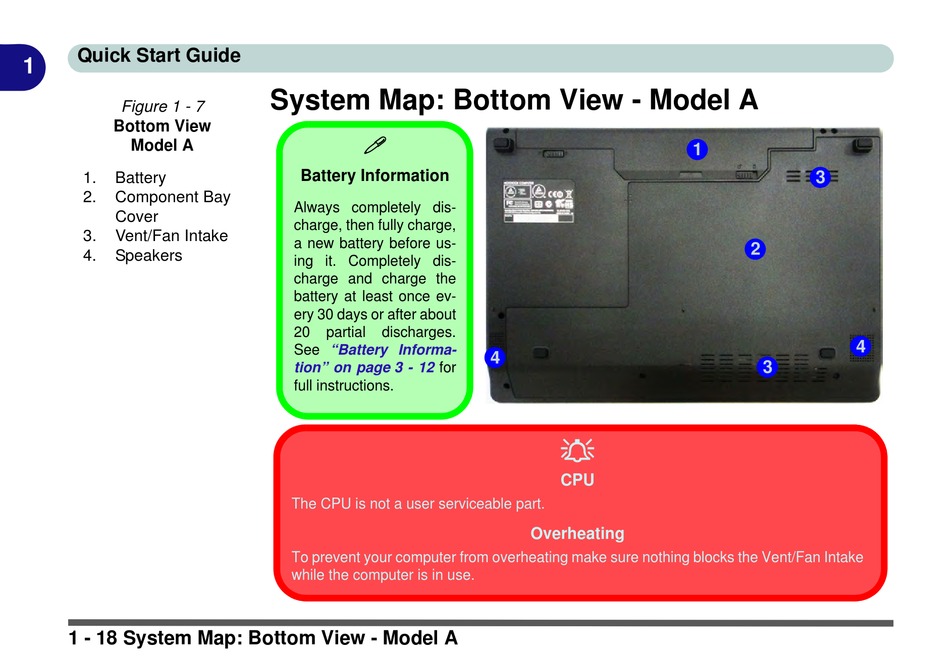

Figure 1 - 7
Bottom View
Model A
1. Battery
2. Component Bay
Cover
3. Vent/Fan Intake
4. Speakers

1 - 18 System Map: Bottom View - Model A

System Map: Bottom View - Model A

Battery Information
Always completely dis-
charge, then fully charge,
a new battery before us-
ing it. Completely dis-
charge and charge the
battery at least once ev-
ery 30 days or after about
20 partial discharges.
See "Battery Informa-
tion" on page 3 - 12 for
full instructions.
The CPU is not a user serviceable part.
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
