System Map: Front & Left Views
1
3
2
3
2
USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black. Note that the USB
3.0 port requires a driver installation (see
6
5
4
6
4 5

USB 3.0 Ports
"USB 3.0" on page 4 - 7) and is not operational under DOS.
7
9
8
7
9
8
System Map: Front & Left Views 1 - 15
Quick Start Guide
Figure 1 - 5
Front & Left Views

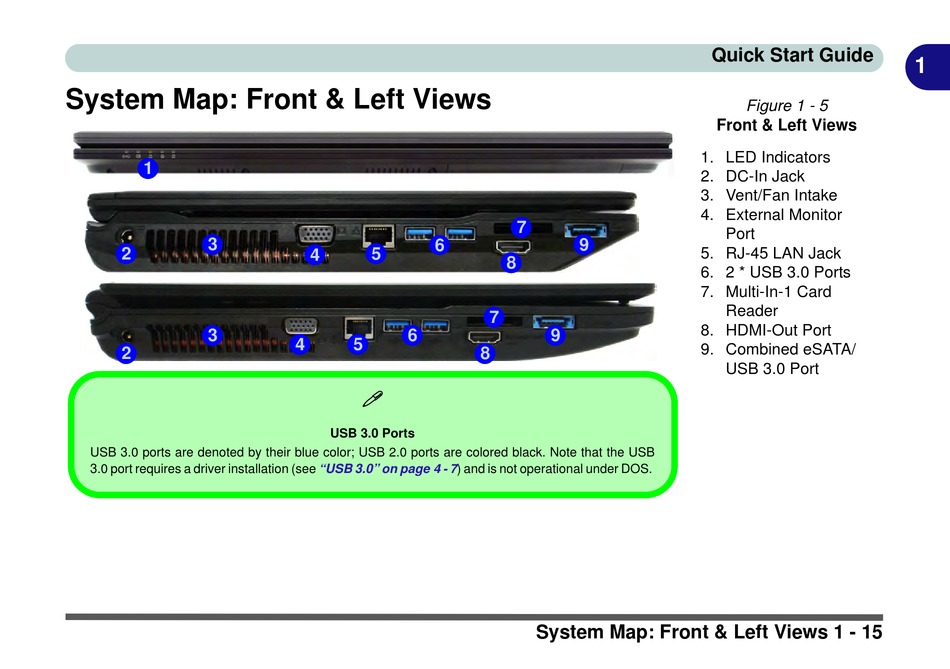

1. LED Indicators
2. DC-In Jack
3. Vent/Fan Intake
4. External Monitor
Port
5. RJ-45 LAN Jack
6. 2 * USB 3.0 Ports
7. Multi-In-1 Card
Reader
8. HDMI-Out Port
9. Combined eSATA/
USB 3.0 Port
1
