Introduction

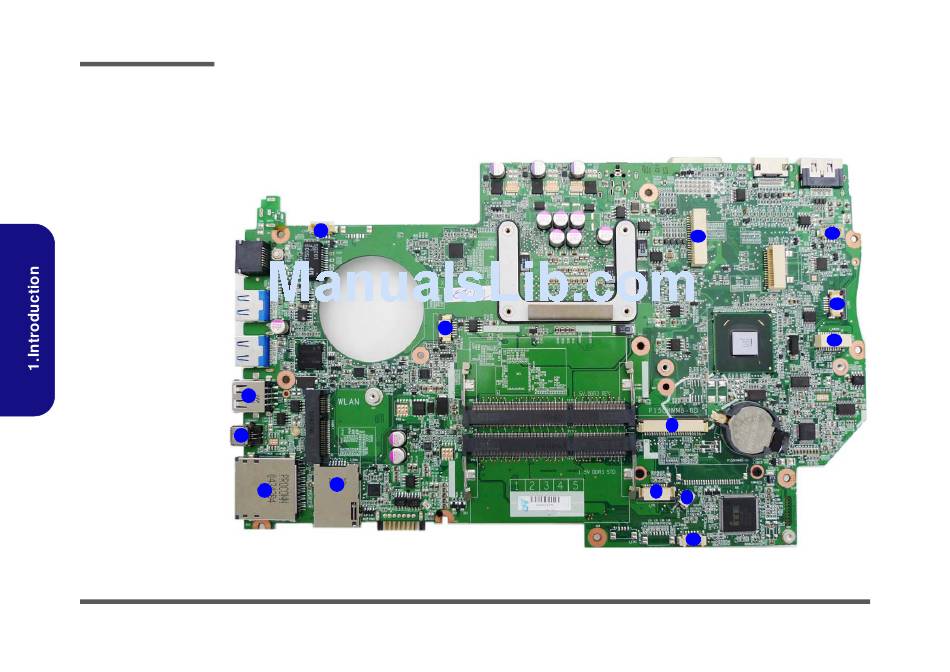

Mainboard Overview - Top (Connectors)
Figure 9
Mainboard Top
Connectors
1. CCD Connector
2. USB 2.0 Port
3. Mini-IEEE 1394a
Port
4. Multi-in-1 Card
Reader
5. USIM Card
6. LED 2 Cable
Connector
7. Keyboard Cable
Connector
8. TouchPad Cable
Connector
9. Microphone
Cable Connector
10. LED 3 Cable
Connector
2
11. Audio Cable
Connector
12. LED 1 Cable
3
Connector
13. Speaker
Connector
14. LCD Cable
Connector
1 - 10 Mainboard Overview - Top (Connectors)
1
5
4
6
13
14
12
11
7
8
9
10
