Removing The Wireless Lan Module - EUROCOM P150HM Service Manual

Removing the Wireless LAN Module

1. Turn off the computer, remove the battery
2. The Wireless LAN module will be visible at point
3. Carefully disconnect cables
4. The Wireless LAN module
5
5. Lift the Wireless LAN module
a.
1
b.
(page 2 - 5) and the keyboard
under the keyboard
1
- , then remove screw from the module socket
2
3 4
will pop-up (Figure 13c).
(Figure 13d) up and off the computer
4
3
2
(page 2 - 12) .
(Figure 13a).
(Figure 13b).
.
c.
5
d.
5
Removing the Wireless LAN Module 2 - 17
Disassembly

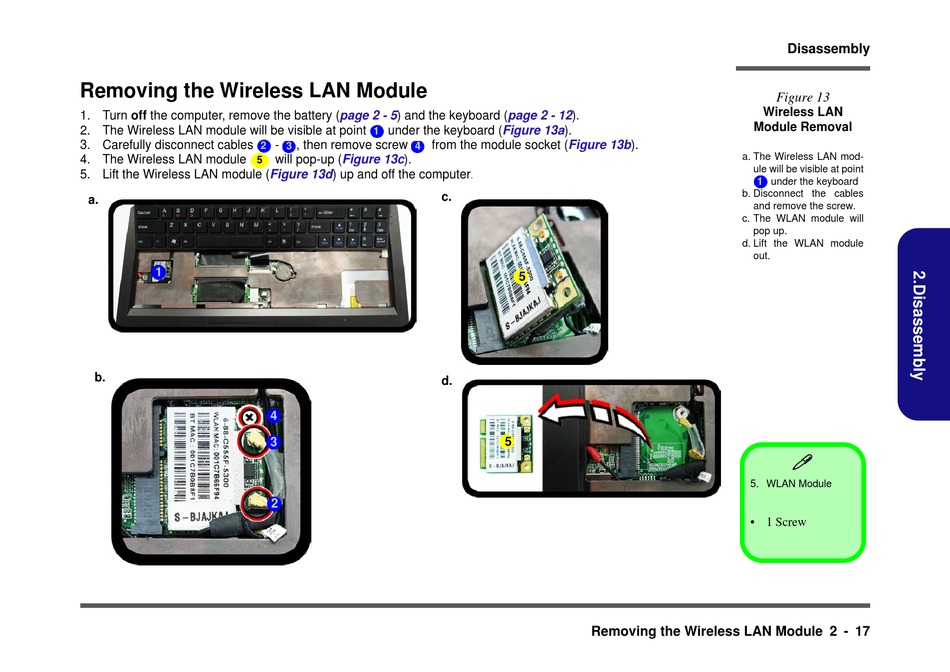

Figure 13
Wireless LAN
Module Removal
a. The Wireless LAN mod-
ule will be visible at point
1 under the keyboard
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.

5. WLAN Module
• 1 Screw
