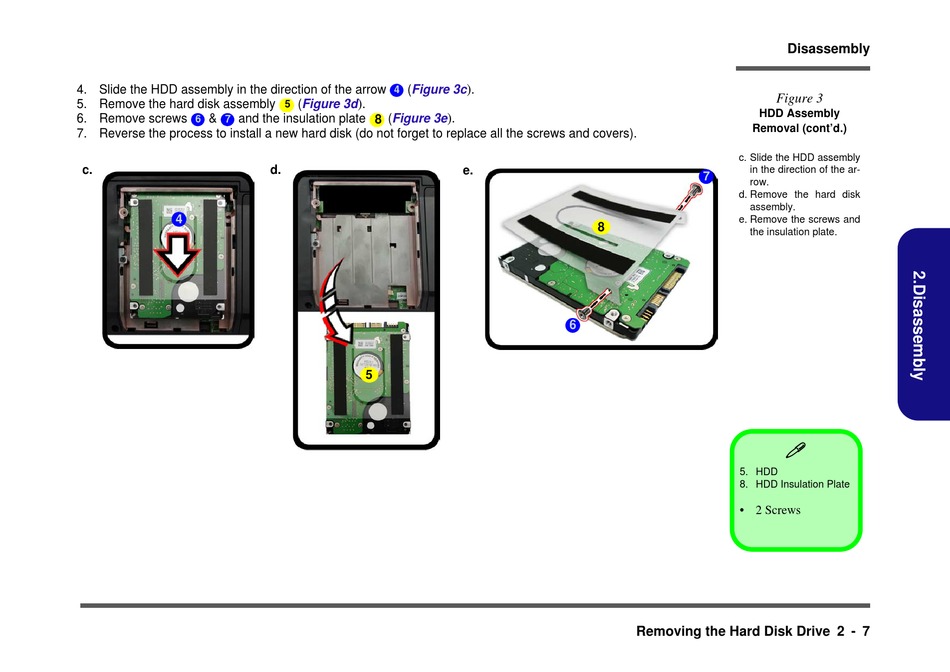

EUROCOM P150HM Service Manual page 31

4. Slide the HDD assembly in the direction of the arrow
5. Remove the hard disk assembly
6. Remove screws & and the insulation plate
6 7
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
c.
4
(Figure 3c
4
)
(Figure 3d .
5 6
(Figure 3e ).
8
6
d.
5
) .
e.
8
6
Removing the Hard Disk Drive 2 - 7
Disassembly
Figure 3
HDD Assembly
Removal (cont'd.)
c. Slide the HDD assembly
in the direction of the ar-
7
row.
d. Remove the hard disk
assembly.
e. Remove the screws and
the insulation plate.

5. HDD
8. HDD Insulation Plate
• 2 Screws
