Mainboard Overview - Bottom (Connectors)
3
2
4
5
6
1
9
8
7
8
Mainboard Overview - Bottom (Connectors) 1 - 11
Introduction

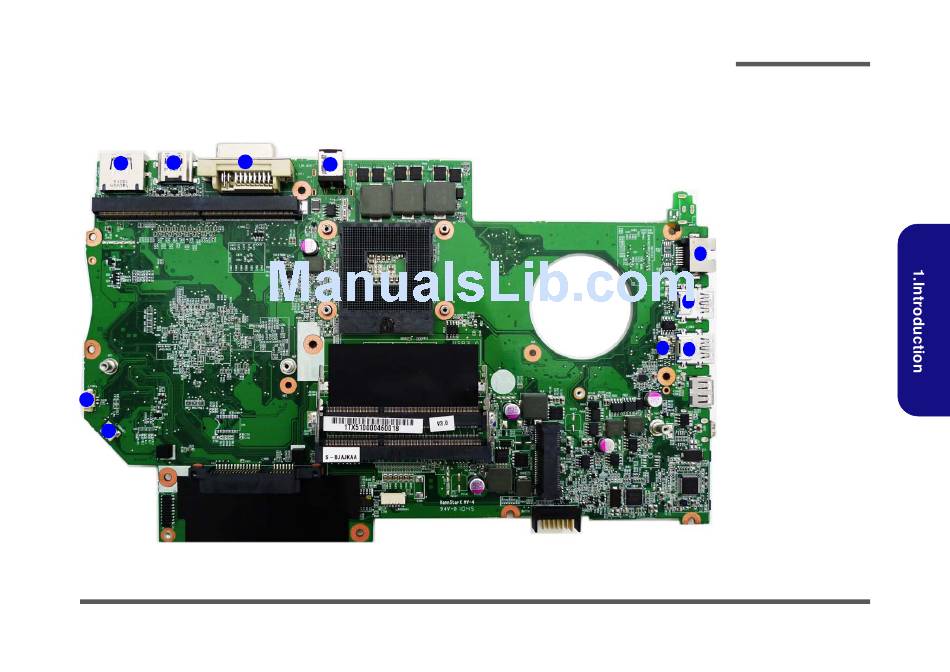

Figure 10
Mainboard Bottom
Connectors
1. DC-In Jack
2. DVI-Out Port
3. HDMI-Out Port
4. eSATA/USB 2.0
Combo Port
5. VGA Fan Cable
Connector
6. Sub Woofer
Cable Connector
7. CPU Fan Cable
Connector
8. USB 3.0 Ports
9. RJ-45 LAN Jack
