Inserting The Hard Disk Into The Hdd Bay - EUROCOM P150HM Service Manual

Disassembly

Inserting the Hard Disk Into the HDD Bay

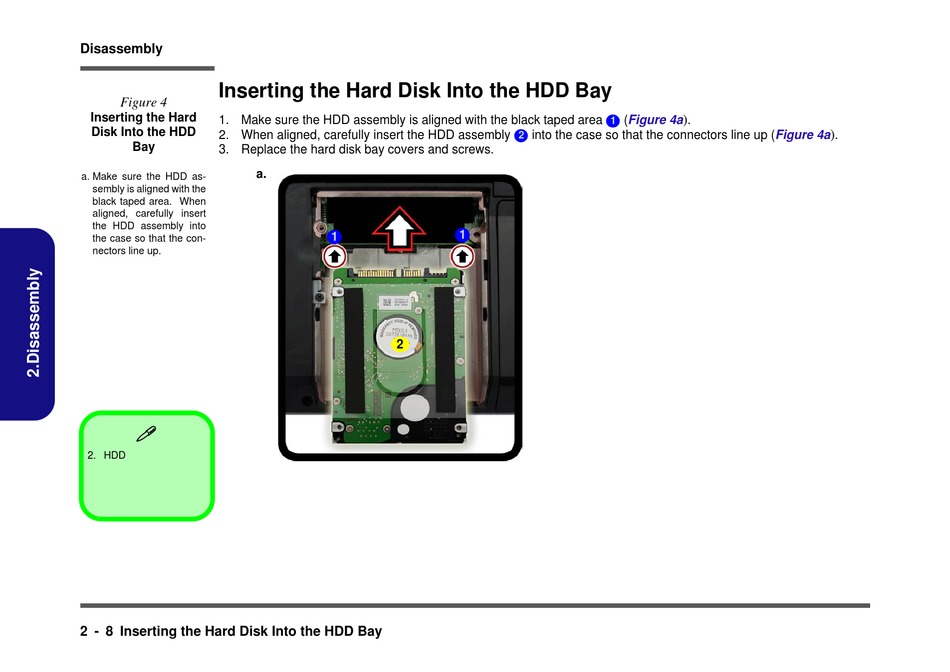

Figure 4
Inserting the Hard
1. Make sure the HDD assembly is aligned with the black taped area
Disk Into the HDD
2. When aligned, carefully insert the HDD assembly
Bay
3. Replace the hard disk bay covers and screws.
a.
a. Make sure the HDD as-
sembly is aligned with the
black taped area. When
aligned, carefully insert
the HDD assembly into
the case so that the con-
nectors line up.

2. HDD
2 - 8 Inserting the Hard Disk Into the HDD Bay
1
1
2
)
(Figure 4a .
1
into the case so that the connectors line up
2
(Figure 4a ) .
