Removing the Wireless LAN Module

1. Turn off the computer, remove the battery
2. The Wireless LAN module will be visible at point
3. Carefully disconnect cables
4. The Wireless LAN module
5
5. Lift the Wireless LAN module
a.
W860CU
1
b.
2
4
3
(page 2 - 5) and the component bay cover
on the mainboard.
1
- , then remove screw from the module socket.
2
3 4
will pop-up.
(Figure 11d) up and off the computer.
W870CU
1
c.
5
(page 2 - 10) .
d.
5
Removing the Wireless LAN Module 2 - 15
Disassembly

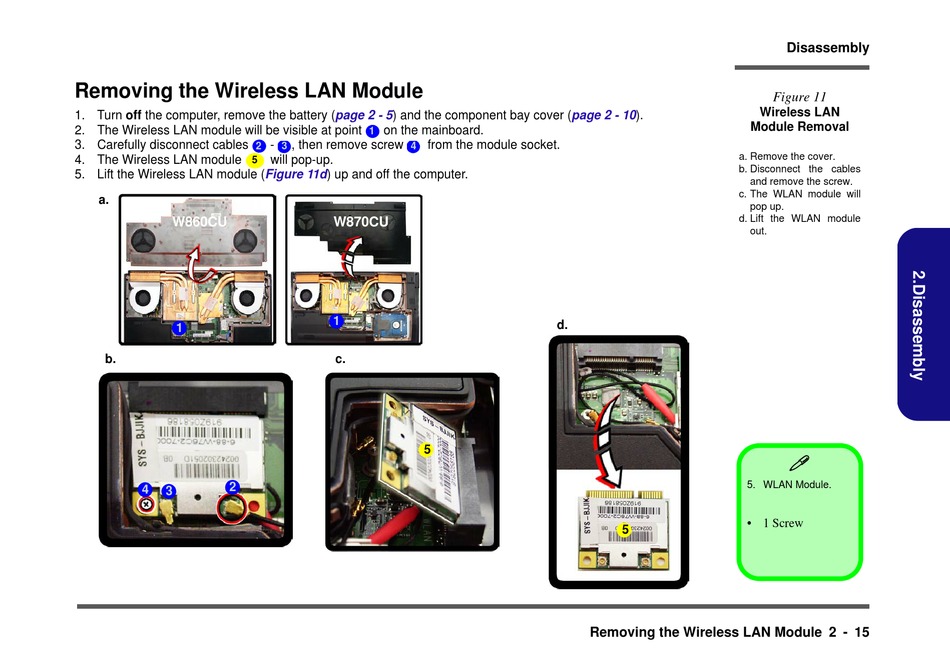

Figure 11
Wireless LAN
Module Removal
a. Remove the cover.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.

5. WLAN Module.
• 1 Screw
